What is a Communication Antenna and How Does It Work?

Have you ever wondered how your smartphone connects to a cell tower miles away, or how your WiFi router transmits data through walls? The invisible bridge between these devices is the communication antenna — a critical component most people never see but rely on every single day. Without antennas, our entire wireless world would simply stop functioning.

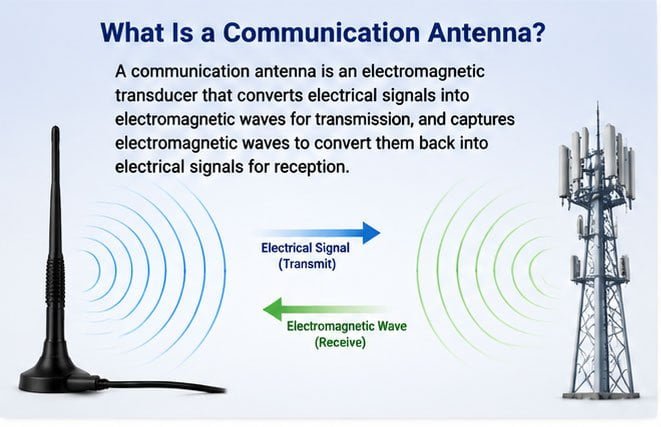

A communication antenna is an electromagnetic transducer that converts electrical signals into electromagnetic waves for transmission, and captures electromagnetic waves to convert them back into electrical signals for reception. This bidirectional conversion enables wireless signal transmission across distances, forming the foundation of all wireless communication systems including cellular networks, WiFi, GPS, satellite communications, and IoT devices.

Throughout my years working with communication equipment manufacturers, I've seen firsthand how choosing the right antenna can make or break a product's performance. Understanding how antennas work isn't just academic knowledge — it directly impacts purchasing decisions for anyone building wireless systems.

What Is a Communication Antenna? A Complete Guide to How It Works

Have you purchased wireless equipment only to find it underperforms in real-world conditions? Often, the antenna is the culprit. Many buyers focus entirely on the main device while treating the antenna as an afterthought.

A communication antenna is a specialized conductor designed to efficiently radiate or receive electromagnetic energy at specific frequencies. It serves as the interface between guided waves (signals in cables or circuits) and free-space electromagnetic waves, enabling wireless transmission and reception of information across the electromagnetic spectrum.

The fundamental principle behind every communication antenna is electromagnetic field theory, specifically Maxwell's equations. When alternating current flows through a conductor, it creates time-varying electric and magnetic fields around it. If the conductor's physical dimensions match specific wavelength criteria (typically quarter-wavelength or half-wavelength), these fields detach from the conductor and propagate outward as electromagnetic waves.

The Transmission Process: Converting Electricity to Radio Waves

During transmission, your communication device generates an electrical signal — essentially an alternating current at a specific radio frequency. This signal travels through transmission lines (like coaxial cables) to reach the antenna's feed point.

Once the RF current enters the antenna element, several things happen simultaneously:

• Current distribution forms along the antenna's length according to its physical design
• Electric fields develop between different parts of the antenna structure
• Magnetic fields circle the current-carrying conductor
• Field coupling occurs when these time-varying fields reach sufficient strength

When properly designed, the antenna's geometry ensures these fields don't just collapse back into the conductor. Instead, they break away and propagate into space as electromagnetic radiation. The efficiency of this conversion process determines how much of your input power actually radiates versus being lost as heat.

The Reception Process: Capturing Waves from Space

Reception works in reverse but relies on the same electromagnetic principles. Electromagnetic waves traveling through space encounter the antenna's conductive elements. These passing waves induce tiny currents in the conductor through electromagnetic induction.

Here's what makes reception remarkable: an antenna doesn't need to "grab" the entire wave. Even the microscopic voltages induced by distant electromagnetic fields are sufficient. Your antenna collects this weak signal, and the attached receiver amplifies it thousands or millions of times.

The antenna's effectiveness as a receiver depends on several factors:

• Impedance matching between the antenna and receiver input
• Polarization alignment with the incoming wave
• Frequency tuning to resonate at the desired signal frequency
• Physical orientation toward the signal source (for directional antennas)

Reciprocity: Why the Same Antenna Works Both Ways

One of the most useful principles in antenna engineering is reciprocity. An antenna's transmission pattern and reception pattern are identical. If an antenna radiates strongly in a particular direction when transmitting, it will also receive best from that same direction.

This reciprocity simplifies antenna design and testing. We can characterize an antenna's performance in transmit mode and know those same characteristics apply when receiving. For buyers, this means you're essentially getting two devices in one — every communication antenna functions as both transmitter and receiver.

In my experience supplying antennas to equipment manufacturers, reciprocity often surprises engineers new to RF design. They sometimes request different antennas for transmission and reception, not realizing a single well-designed antenna serves both functions efficiently.

How Do Communication Antennas Work? Understanding the Basics of RF Communication

Why do some antennas extend several feet while others hide inside smartphones barely larger than a credit card? The answer lies in the relationship between wavelength and antenna size.

Communication antennas work by creating resonance at specific radio frequencies. When the antenna's physical dimensions correspond to fractions of the electromagnetic wavelength (commonly half-wavelength or quarter-wavelength), it resonates efficiently, maximizing the conversion between electrical signals and electromagnetic radiation. This resonance principle determines antenna size, shape, and performance characteristics.

The wavelength formula provides the foundation for all antenna design:

Wavelength (λ) = Speed of Light (c) / Frequency (f)

Where:

• c = 300,000,000 meters per second (approximately)
• f = frequency in Hertz (Hz)

This simple equation explains why different communication systems require vastly different antenna sizes.

Frequency and Physical Size Trade-offs

Let me show you how wavelength impacts real-world antenna design with some common frequencies:

Notice the inverse relationship: as frequency increases, wavelength decreases, allowing smaller antennas. This is why your smartphone can pack multiple antennas for different frequency bands into a compact form factor.

Current Distribution and Radiation Patterns

When RF current flows through an antenna, it doesn't distribute uniformly. The distribution follows predictable patterns based on the antenna's length relative to wavelength.

For a half-wavelength dipole (the most fundamental antenna type), current reaches maximum at the center and falls to zero at the ends. This creates a specific radiation pattern — the antenna radiates strongest perpendicular to its length and weakest off the ends.

Understanding radiation patterns is critical for practical applications:

• Omnidirectional patterns radiate equally in all horizontal directions (ideal for mobile devices)
• Directional patterns focus energy in specific directions (better for point-to-point links)
• Sector patterns cover specific angular regions (common in cellular base stations)

When sourcing antennas for equipment, I always ask manufacturers about their physical installation environment. An omnidirectional antenna perfect for a router sitting on a desk becomes inefficient when mounted against a metal wall.

Impedance and Matching Networks

Every antenna has a characteristic impedance — essentially its electrical resistance at the operating frequency. Standard RF systems use 50-ohm impedance (some broadcast applications use 75 ohms).

When your antenna's impedance doesn't match the transmission line or device, you get impedance mismatch. This causes several problems:

• Reflected power bounces back toward the transmitter instead of radiating
• Reduced efficiency wastes your transmitted power
• Standing waves create voltage peaks that can damage equipment
• Frequency sensitivity narrows your usable bandwidth

The quality of impedance matching is measured by VSWR (Voltage Standing Wave Ratio). A perfect match gives VSWR = 1:1. In practice, VSWR below 2:1 is acceptable for most applications, though better performance targets 1.5:1 or lower.

I've seen countless cases where buyers focus exclusively on antenna gain while ignoring VSWR specifications. An antenna with poor impedance matching often underperforms a well-matched antenna with lower gain.

Polarization: The Orientation of Electromagnetic Waves

Electromagnetic waves oscillate in specific orientations, called polarization. The polarization matches the antenna's physical orientation.

Common polarization types include:

• Vertical polarization — electric field oscillates vertically (most mobile antennas)
• Horizontal polarization — electric field oscillates horizontally (some WiFi and TV antennas)
• Circular polarization — electric field rotates (GPS, satellite communications)

For effective communication, transmitting and receiving antennas need matching polarization. A vertically polarized transmitter works poorly with a horizontally polarized receiver — you can lose 20-30 dB of signal strength due to polarization mismatch alone.

GPS antennas universally use circular polarization because satellites constantly move relative to ground receivers. Circular polarization eliminates orientation sensitivity, ensuring consistent reception regardless of receiver position.

Communication Antennas Explained: Types, Functions, and Working Principles

With hundreds of antenna designs available, how do you know which type suits your application? Each antenna type offers distinct advantages for specific use cases.

Communication antennas are categorized by their radiation patterns, frequency bands, physical structure, and application requirements. Major types include dipole antennas, monopole antennas, patch antennas, Yagi antennas, parabolic antennas, and array antennas. Each type optimizes different performance parameters such as gain, directivity, bandwidth, and size, making them suitable for specific wireless communication scenarios.

Understanding antenna types helps match technical requirements with practical constraints like size, mounting, and environmental conditions.

Dipole and Monopole Antennas

The dipole antenna is the most fundamental design — two conductive elements extending from a central feed point, each approximately quarter-wavelength long.

Key characteristics:

• Radiation pattern: Omnidirectional in the plane perpendicular to the antenna
• Impedance: Approximately 73 ohms in free space
• Gain: 2.15 dBi (reference standard for antenna gain measurements)

The monopole antenna is essentially half a dipole mounted above a ground plane. The ground plane acts as a mirror, creating the electrical equivalent of a full dipole.

Monopoles offer several advantages:

• Half the physical height of an equivalent dipole
• Simpler mounting (one end grounded)
• Lower cost for portable applications

Your car's AM/FM radio antenna is a classic monopole — the vehicle's metal body serves as the ground plane. Most cellular base station antennas also use monopole or collinear monopole designs.

Patch Antennas (Microstrip Antennas)

Patch antennas consist of a flat metal patch above a ground plane, separated by a dielectric substrate. They've become extremely popular for modern wireless devices.

Advantages of patch antennas:

• Low profile — can be embedded in thin enclosures
• Lightweight — ideal for portable devices
• Easy manufacturing — produced using PCB fabrication techniques
• Dual-band capability — can be designed for multiple frequencies

However, patch antennas have limitations:

• Narrow bandwidth compared to wire antennas
• Lower efficiency (some power lost in the substrate)
• Sensitive to nearby objects and mounting surface

I frequently recommend patch antennas to manufacturers building compact IoT devices or integrating antennas into product housings. Their flexibility in shape allows creative integration solutions.

Yagi-Uda Directional Antennas

The Yagi antenna (named after its inventor) uses multiple parallel elements to create a highly directional beam. You've likely seen these on rooftops for TV reception.

Structure components:

• Driven element — the only element connected to the feed line
• Reflector — slightly longer element behind the driven element
• Directors — shorter elements in front of the driven element

Adding more director elements increases gain and directivity. A typical TV Yagi might have 10-20 elements, achieving 10-15 dBi gain.

Yagi antennas excel at:

• Long-range point-to-point communication
• Receiving weak signals from known directions
• Rejecting interference from other directions

For wireless bridge applications connecting buildings, Yagi antennas offer excellent performance at reasonable cost. However, they require careful alignment and are unsuitable for mobile or omnidirectional applications.

Parabolic Reflector Antennas

Parabolic antennas use a curved reflector to focus electromagnetic waves, similar to how satellite dishes work. A small feed antenna at the focal point transmits or receives signals that reflect off the parabolic surface.

Key specifications:

• Gain: 20-50 dBi or higher (depends on dish size)
• Beamwidth: Very narrow (1-10 degrees typical)
• Frequency: Works best at microwave frequencies (>1 GHz)

The gain of a parabolic antenna increases with dish diameter and frequency:

Gain (dBi) ≈ 20 × log₁₀(π × D / λ)

Where D is the dish diameter and λ is wavelength.

Parabolic antennas are essential for:

• Satellite communications (both ground stations and spacecraft)
• Microwave backhaul links
• Radio astronomy
• Long-range 5G mmWave connections

One challenge I've observed: buyers sometimes underestimate the precision required for parabolic antenna installation. Even a few degrees of misalignment can completely miss the target at long distances.

Array Antennas and Beamforming

Antenna arrays combine multiple antenna elements into a single system. By controlling the phase and amplitude of signals feeding each element, the array can electronically steer its beam without physical movement.

Modern applications of array antennas include:

Phased arrays for 5G base stations, which simultaneously serve multiple users with individually optimized beams

MIMO (Multiple-Input Multiple-Output) systems that use spatial diversity to increase data throughput

Adaptive arrays that automatically adjust their patterns to maximize signal and minimize interference

The mathematics behind array antennas is complex, but the practical benefits are clear:

• Electronic beam steering (no moving parts)
• Multiple simultaneous beams
• Interference suppression
• Increased channel capacity

Array antennas represent the cutting edge of communication technology. As 5G deployment expands, array-based systems become increasingly common even in consumer equipment.

A Beginner's Guide to Communication Antennas and Their Applications

If you're new to wireless systems, antenna specifications can seem like alphabet soup. What do all those numbers and technical terms actually mean for your application?

For beginners, the most important antenna parameters are gain (signal strength amplification), frequency range (which wireless bands it supports), VSWR (impedance matching quality), and radiation pattern (coverage direction). These specifications directly determine whether an antenna will work effectively in your wireless system, affecting communication range, reliability, and data throughput.

Let me break down the essential specifications you'll encounter when evaluating antennas.

Understanding Antenna Gain

Antenna gain measures how well an antenna concentrates electromagnetic energy in preferred directions compared to a reference antenna (usually an isotropic radiator or dipole).

Gain is expressed in:

• dBi — decibels relative to an isotropic radiator (theoretical point source radiating equally in all directions)
• dBd — decibels relative to a half-wave dipole antenna

The relationship: dBi = dBd + 2.15

Higher gain antennas focus energy more tightly, increasing effective range in specific directions while reducing coverage in others. This creates an important trade-off:

A common misconception: higher gain always means better performance. Actually, you need gain matched to your application. A 15 dBi antenna is terrible for a mobile router that needs 360-degree coverage.

Frequency Range and Bandwidth

Every antenna is designed for specific frequency ranges. This specification tells you which wireless standards and bands the antenna supports.

Common frequency ranges include:

Sub-1 GHz: 433 MHz, 868 MHz, 915 MHz (LoRa, industrial IoT)

Cellular:

• 2G/3G: 850, 900, 1800, 1900 MHz
• 4G
