Complete Guide to RF Coaxial Cable Connectors in 2026?
The landscape of RF coaxial cable connectors has evolved significantly, particularly with the rollout of 5G networks and the expansion of IoT applications demanding higher frequencies and smaller form factors.
In 2026, RF coaxial cable connectors must meet stricter performance requirements than ever before: supporting frequencies up to 110 GHz for specialized applications, maintaining VSWR below 1.15 across operational bands, withstanding hundreds of mating cycles, and complying with environmental standards including IP67 ingress protection and extended temperature ranges from -40°C to +85°C. Modern connectors balance miniaturization demands against power handling requirements while ensuring backward compatibility with legacy systems.
Current Industry Standards and Requirements
The RF connector industry operates under several key standards that define performance benchmarks. MIL-STD-348 remains the military standard reference for connector dimensions and performance, while IEC 61169 series covers international standardization for RF connectors up to 110 GHz.
Recent developments include:
- Push-pull connectors gaining market share in dense equipment installations
- Blind-mate connectors becoming standard in modular radio systems
- Hermetically sealed variants required for outdoor and harsh environment applications
- Low-PIM (Passive Intermodulation) connectors mandatory for cellular infrastructure
The push toward higher data rates drives demand for connectors with superior electrical performance. A connector that performed adequately at 2.4 GHz may fail catastrophically at 28 GHz mmWave frequencies due to tolerance accumulation and impedance discontinuities.
Key Performance Metrics You Must Understand
When evaluating RF connectors in 2026, I focus on these critical specifications:
| Parameter | Typical Range | Impact on Performance |
|---|---|---|
| Frequency Range | DC to 110 GHz | Determines usable bandwidth |
| VSWR | 1.05 to 1.30 | Affects signal reflection loss |
| Insertion Loss | 0.1 to 0.5 dB | Direct signal power loss |
| Durability | 100 to 5000 cycles | Mechanical reliability over time |
| PIM | -150 to -165 dBc | Critical for cellular base stations |
VSWR (Voltage Standing Wave Ratio) measures impedance matching quality. A VSWR of 1.15 means 0.6% of signal power reflects back, while 1.30 reflects 2.3% — seemingly small differences that compound across multiple connectors in a system.
Material Science and Connector Longevity
The materials used in RF connector construction directly determine lifespan and performance consistency. Quality connectors use:
- Gold plating (typically 0.5-1.5 μm) on center pins for corrosion resistance and stable contact resistance
- PTFE or equivalent low-loss dielectrics maintaining consistent dielectric constant across temperature
- Beryllium copper or phosphor bronze spring contacts for repeated mating cycles
- Stainless steel or brass bodies with appropriate plating for environmental protection
I've tested connectors from various suppliers, and the difference between quality materials and cost-cutting substitutes becomes obvious after 100 mating cycles. Budget connectors show measurable VSWR degradation and increased insertion loss, while properly engineered connectors maintain specifications well beyond rated cycle life.
The environmental sealing requirements have become particularly demanding. True IP67-rated connectors require specialized gasket materials and precise tolerance control. Many suppliers claim IP67 compliance but fail actual submersion testing — verify this with your supplier through documented test reports.
How to Choose the Right RF Coaxial Cable Connector?
Selecting an RF connector seems straightforward until you face dozens of types, each claiming to be "the best solution." The wrong choice costs more than just money — it delays projects and creates field reliability issues.
Choose your RF coaxial cable connector by matching four critical parameters in sequence: first, verify frequency range covers your application with 20% margin; second, confirm mechanical form factor fits your space constraints and mounting method; third, validate power handling exceeds your maximum transmit power by 3 dB; fourth, ensure environmental ratings match or exceed your deployment conditions. This systematic approach eliminates 80% of unsuitable options before detailed evaluation begins.

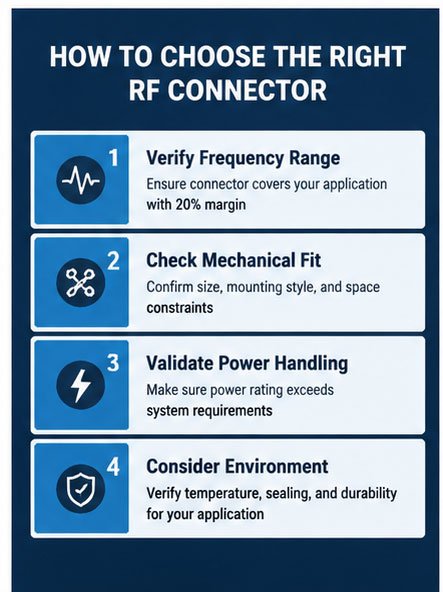

Step 1: Define Your Electrical Requirements
Start with frequency. If your system operates at 2.4 GHz, don't specify a connector rated only to 3 GHz. Harmonics and design margins matter. I recommend selecting connectors rated to at least 1.5× your highest operating frequency.
Next, calculate maximum power levels. A 10-watt transmitter through a 50-ohm system creates specific voltage and current requirements. Your connector must handle this power without voltage breakdown or excessive temperature rise.
Critical electrical specifications checklist:
- Operating frequency band (with margins)
- Maximum transmit power (average and peak)
- Required VSWR performance
- Acceptable insertion loss budget
- PIM requirements (if applicable to cellular systems)
Step 2: Mechanical and Environmental Factors
The connector must physically fit your application. Measure available space carefully — connector bodies and required bend radii often surprise designers.
Consider these mechanical aspects:
- Mating cycles required: A lab test setup needs 100 cycles; production equipment may need 1000+
- Mounting method: Panel mount, PCB mount, bulkhead, or cable-to-cable
- Coupling mechanism: Threaded (most secure), bayonet (quick connect), push-pull, or snap-on
- Cable attachment: Crimp, solder, or clamp determines assembly complexity and reliability
Environmental conditions often receive insufficient attention during selection. Outdoor installations require UV-resistant materials and proper sealing. Temperature cycling causes differential expansion — quality connectors accommodate this through design.
Step 3: Supply Chain and Cost Considerations
Here's where my manufacturing experience becomes relevant. The best technical choice means nothing if you can't source it reliably or if it exceeds budget.
Evaluate suppliers based on:
- Stock availability and lead times: Can they ship within your project timeline?
- Minimum order quantities: Are MOQs practical for prototype and production phases?
- Consistency between batches: Request test reports showing parameter variation
- Customization capability: Can they modify cable length, connector orientation, or plating?
Price varies dramatically. A high-quality SMA connector might cost $3-8 in volume, while bargain versions sell for under $1. The cheaper version often fails specifications, uses inferior materials, or shows high unit-to-unit variation. For critical applications, I never compromise on connector quality — the system cost of a failure far exceeds component savings.
Common Selection Mistakes to Avoid
After reviewing hundreds of customer applications, these mistakes appear repeatedly:
- Over-specifying precision connectors for applications where standard connectors suffice (wastes budget)
- Under-specifying environmental protection leading to field failures
- Ignoring cable flexibility requirements causing mechanical stress at connector interface
- Mixing connector genders incorrectly resulting in incompatible assemblies
- Neglecting backward compatibility when upgrading existing systems
I once consulted on a project where the team selected beautiful N-type connectors for a handheld device. Perfect electrical performance, but so large the industrial designer couldn't fit them in the housing. Three weeks lost redesigning around SMA connectors that should have been specified from the start.

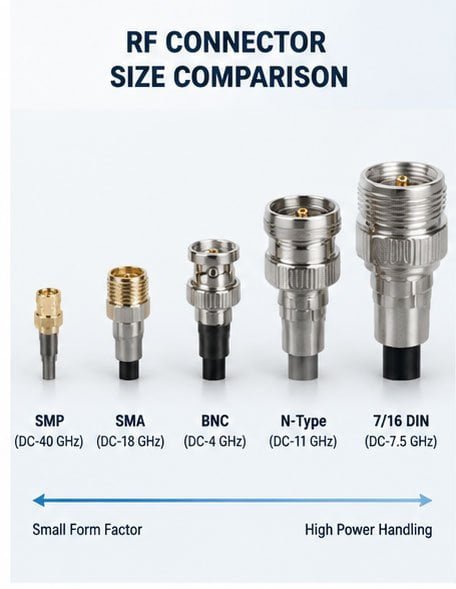

Types of RF Coaxial Cable Connectors Explained?
Walking into RF connector selection without understanding the major types is like shopping for tools without knowing the difference between a wrench and a screwdriver — everything looks similar until you try to use it.
RF coaxial cable connectors divide into eight major families: SMA (subminiature version A) for high-frequency precision applications up to 18-26 GHz; N-type for medium power applications up to 11 GHz; BNC (bayonet Neill-Concelman) for quick-connect instrumentation below 4 GHz; TNC (threaded Neill-Concelman) providing secure threaded version of BNC; F-type for consumer applications like cable TV; MCX/MMCX for compact snap-on connections; U.FL/MHF for ultra-miniature PCB applications; and 7-16 DIN for high-power cellular base stations. Each type represents specific trade-offs between size, frequency capability, power handling, and ease of use.
SMA Connectors: The High-Frequency Workhorse
SMA connectors dominate applications requiring reliable performance from DC to 18 GHz (standard) or 26.5 GHz (precision variants). The threaded coupling provides excellent mechanical stability, making SMA ideal for laboratory equipment, test instrumentation, and telecommunications infrastructure.
Key SMA characteristics:
- Impedance: 50 ohms (standard for most RF applications)
- Coupling: Threaded (typically 5/16-36 thread)
- Size: Compact but not the smallest option
- Mating cycles: 500+ for quality connectors
- Applications: WiFi antennas, GPS receivers, test equipment, cellular modules
I use SMA connectors extensively in antenna assemblies because customers understand them and they perform consistently. The threaded coupling prevents accidental disconnection — critical for permanent installations.
Variants you'll encounter:
- Standard SMA: Most common, suitable for general applications
- SMA-RP (Reverse Polarity): Gender-reversed version required by FCC for WiFi to prevent unauthorized antenna swaps
- Precision SMA: Tighter tolerances for metrology and test equipment
- Panel-mount SMA: Bulkhead versions for chassis mounting
N-Type Connectors: Medium Power Champion
N-type connectors excel in applications requiring higher power handling and weatherproofing up to 11 GHz. The larger size compared to SMA allows better power dissipation and more robust construction.
These connectors appear frequently in:
- Outdoor wireless equipment
- Cellular infrastructure (though increasingly replaced by 7-16 DIN)
- Broadcast transmitters
- High-power amplifier connections
The threaded coupling and available weather sealing make N-type connectors reliable for permanent outdoor installations. I specify N-type when customers need something more rugged than SMA but don't require the extreme power handling of 7-16 DIN connectors.
BNC and TNC Connectors: Quick-Connect Convenience
BNC connectors use a bayonet coupling mechanism — a quarter-turn locks the connection. This speed of connection makes BNC popular for test equipment, video applications, and situations requiring frequent connect/disconnect cycles.
BNC advantages:
- Quick connection/disconnection
- Adequate performance to 4 GHz
- Excellent mating cycle life (1000+ cycles)
BNC limitations:
- Frequency range limited compared to SMA
- Bayonet can accidentally release under vibration
- Not typically weatherproof without additional sealing
TNC connectors provide a threaded version of BNC, offering better mechanical security and extended frequency range to 11 GHz while maintaining the same interface dimensions.
Miniature and Micro Connectors: MCX, MMCX, U.FL
Space-constrained applications drove development of miniature connector families. These tiny connectors enable RF connections in smartphones, tablets, GPS modules, and other compact devices.
| Connector Type | Size | Mating Cycles | Frequency | Typical Use |
|---|---|---|---|---|
| MCX | Small | 500+ | DC-6 GHz | Compact equipment |
| MMCX | Micro | 500+ | DC-6 GHz | GPS modules, rotating joints |
| U.FL (IPEX) | Ultra-micro | 30 | DC-6 GHz | PCB to PCB, mobile devices |
| MHF4 | Ultra-micro | 30 | DC-6 GHz | Modern smartphones |
The trade-off for miniaturization is durability. U.FL connectors tolerate only about 30 mating cycles before mechanical degradation affects electrical performance. These are designed for "connect once and leave it" applications inside devices, not frequent reconfiguration.
F-Type Connectors: Consumer Standard
F-type connectors dominate consumer cable TV and satellite installations. The threaded coupling uses the cable's center conductor as the connector pin — an economical design that works adequately for frequencies below 1 GHz.
While F-connectors rarely appear in professional RF equipment, understanding them matters when customers need interface compatibility with existing consumer installations.
7-16 DIN Connectors: High Power Solution
The 7-16 DIN connector (7mm inner diameter, 16mm outer diameter) represents the professional standard for cellular base station infrastructure. These large connectors handle hundreds of watts while maintaining low PIM performance critical for cellular systems.
7-16 DIN advantages:
- Exceptional power handling (>1kW at lower frequencies)
- Superior PIM performance (-165 dBc typical)
- Robust weatherproofing
- Frequency range to 7.5 GHz (sufficient for current cellular bands)
The size and cost of 7-16 DIN connectors limit use to applications genuinely requiring their capabilities — primarily cellular base stations and high-power broadcast equipment.
RF Coaxial Cable Connectors: Everything You Need to Know?
Beyond connector types and basic selection, several critical aspects determine whether your RF system performs reliably in real-world conditions.
RF coaxial cable connectors require attention to five additional factors that separate functional systems from reliable systems: proper assembly technique (crimp vs. solder quality), impedance matching across the connector junction, cable-to-connector compatibility ensuring mechanical stability, quality control verification through VSWR and insertion loss testing, and long-term maintenance planning including inspection schedules and replacement criteria. Mastering these factors prevents the majority of field failures.
Assembly Methods: Crimp vs. Solder vs. Clamp
The method of attaching the connector to the cable affects reliability, assembly time, and long-term performance. I've seen perfect connectors fail because of poor assembly technique.
Crimp connections:
- Fastest assembly method (with proper tools)
- Most consistent when done correctly
- Requires specific crimp tool for each connector/cable combination
- Preferred for production environments
Crimping creates a gas-tight, mechanically stable connection. However, using incorrect crimp dies or applying improper pressure creates unreliable joints. I always verify crimp dimensions with go/no-go gauges when setting up production.
Solder connections:
- Traditional method requiring more skill
- Allows field repairs with minimal tooling
- Risk of cold solder joints or excessive heat damaging cable dielectric
- Slower than crimping
Soldering remains valuable for prototype work and field repairs. The key is temperature control — excessive heat melts the cable's dielectric, changing impedance at the connector junction.
Clamp connections:
- Tool-free assembly (some types)
- Generally lower reliability than crimp or solder
- Acceptable for non-critical applications
- Risk of loosening under vibration
Impedance Matching and VSWR
Every connection point in an RF system creates potential for impedance discontinuity. Standard coaxial systems operate at 50 ohms (sometimes 75 ohms for video applications). The connector must maintain this impedance throughout.
Impedance mismatches cause:
- Signal reflection (measured as return loss or VSWR)
- Power loss
- Standing waves creating "hot spots" in cables
- Reduced system range or data rate
Quality connectors achieve VSWR below 1.15 across their rated frequency range. Budget connectors often measure 1.3 to 1.5 — acceptable for some applications but problematic for precision systems.
