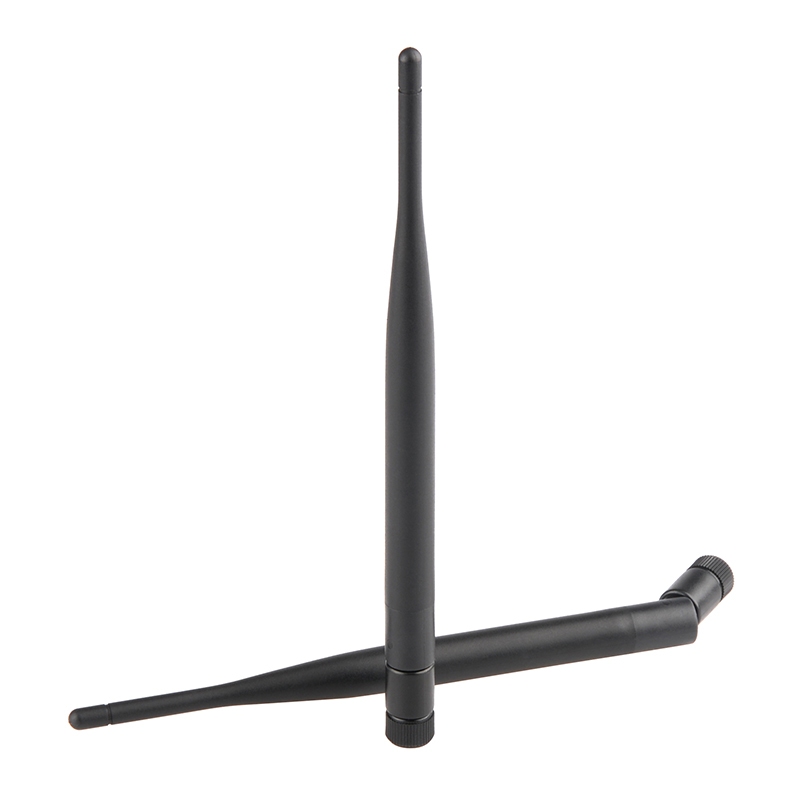

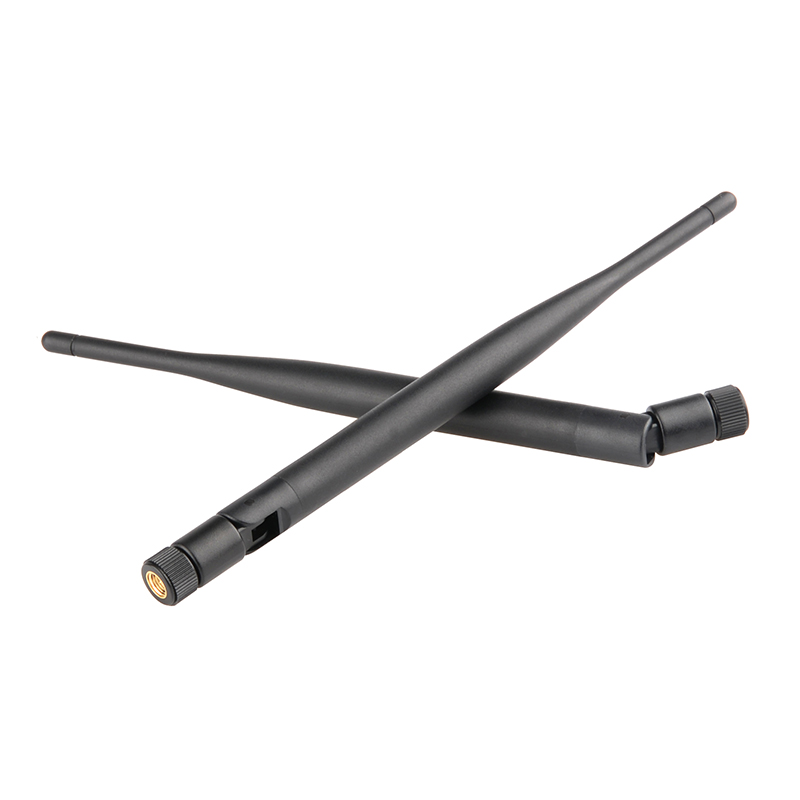

Shengda Omnidirectional Foldable 2.4G 5.8G Lora 868mhz 915mhz GSM LTE Wireless Rubber Antenna for Router

Model: SD-2400-5

Shengda Omnidirectional Foldable 2.4G 5.8G Lora 868mhz 915mhz GSM LTE Wireless Rubber Antenna for Router

Specifications

Model SD-2400-5

Customization Standard Only

Material Fiberglass (FRP)

Key Features

✓ High-strength fiberglass construction
✓ Weather-resistant outdoor design
✓ Excellent RF performance
✓ Low maintenance requirements

Need a Quote?

Contact us for pricing, customization options, or technical specifications.

Send Inquiry Fast response within 24 hours

Product Description

Frequency Range (MHz)	2400-2500MHz
Gain (dBi)	5
Horizontal Beamwidth (°)	360
VSWR	≤2
Input Impedance (Ω)	50
Maximum Power (W)	50
Lightning Protection	DC grounding
Connector type	SMA-Male/RP-SMA Male
Color	Black
Dimensions (mm)	Ø20x195mm
Weight (g)	22
3dB Beamwidth	H:360° E:35°
Operating Temperature (℃)	-40°C to +55 °C
ROHS Complaint	yes
