Frequency Range (MHz)
|
433±5MHz
|
|
Gain (dBi)
|
3dbi
|
|
VSWR
|
<2.0
|
|
Input Impedance (Ω)
|
50
|
|
Horizontal beam width
|
360°
|
|
Vertical beam width
|
55°
|
|
Polarization
|
Vertical
|
|
Input Impedance
|
50Ω
|
|
Maximum input power
|
50W
|
|
Lightning protection
|
DC Ground
|
|

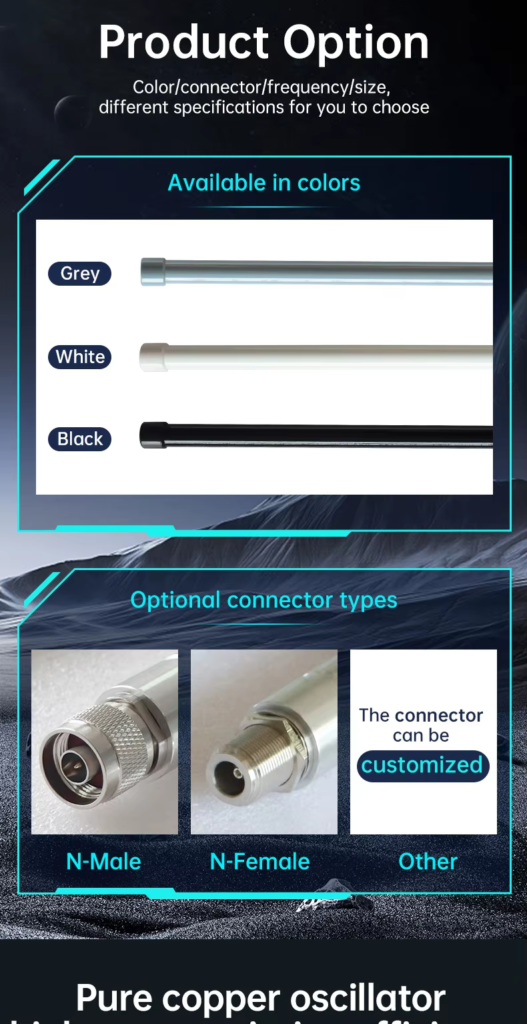

Input connector type
|
N-male/N-female
|
|
Dimensions
|
20×600mm
|
|
Antenna weight
|
0.21kg
|
|
Radome material
|
Fiberglass
|
|
Radome color
|
Gray
|
|
Operating temperature
|
-40°c~60°c
|
|
Rated Wind Velocity
|
60 m/s
|
|
Mounting hardware
|
35~60mm
|
Warm Tips：

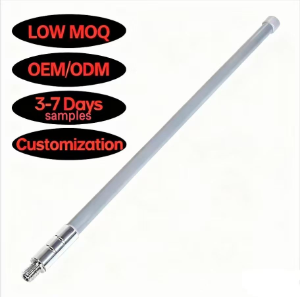

This Listing is for 433Mhz 3dbi (20*600mm), If you need other gain LoRa antenna, Please leave message and contact us for more details !
