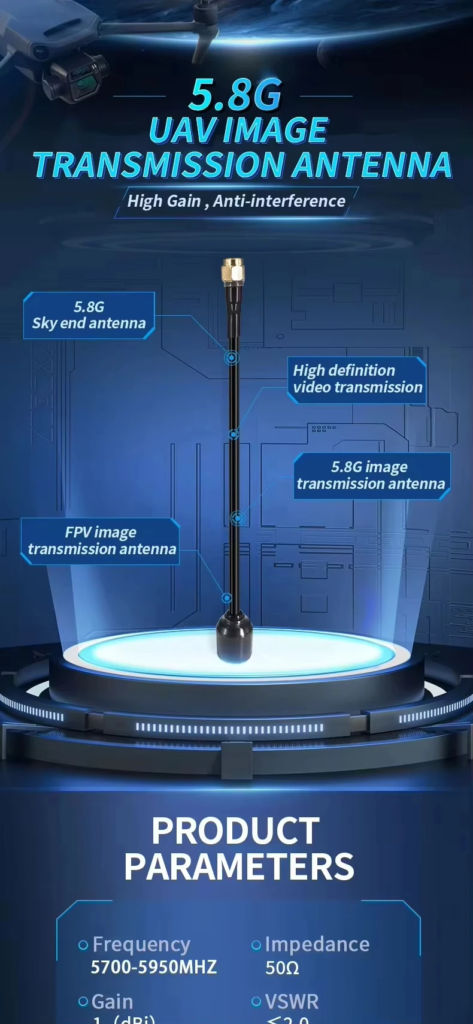

Frequency Range
|
5700-5950 MHz
|
|
Impedance
|
50 Ω
|
|
Gain
|
1 dBi
|
|
VSWR
|
≤2.0
|
|
Max Power
|
50W
|
|
Polarization
|
Vertical
|
|

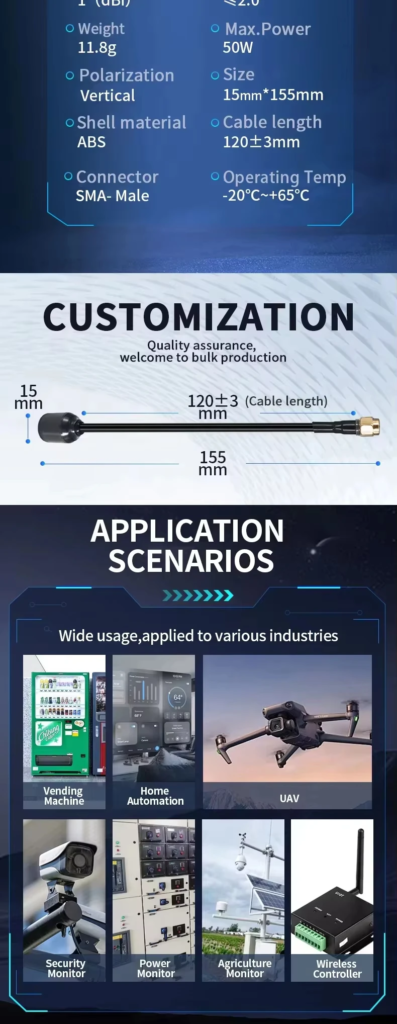

Dimensions
|
15mm × 155mm (ultra-compact)
|
|
Weight
|
11.8g (featherlight)
|
|

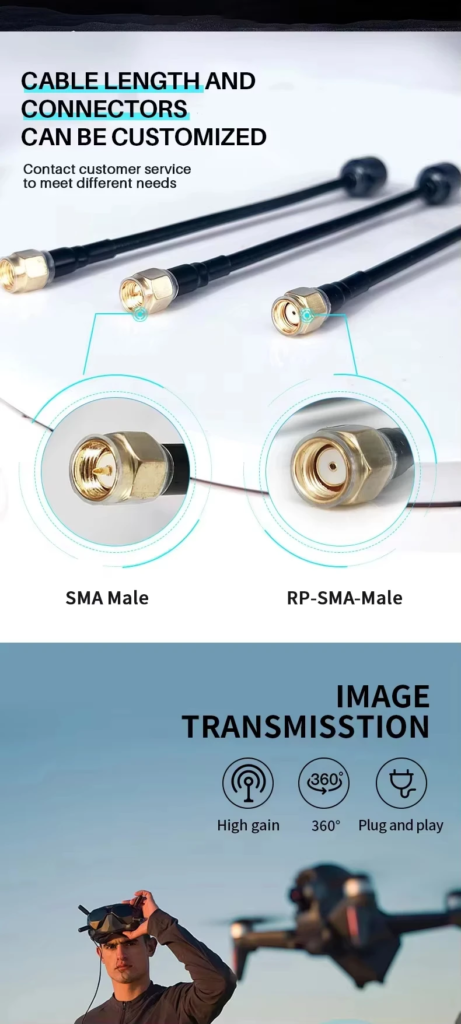

Connector
|
SMA-Male
|
|
Cable Length
|
120±3mm
|
|
Operating Temp
|
-20°C to +65°C (harsh-environment ready)
|
Key Advantages:
• 5G/WiFi 6 Optimized• Industrial-Grade ABS Housing
• 50W High-Power Handling
• Plug-and-Play SMA Connection
Contact us for bulk orders or technical data sheets!
• 5G/WiFi 6 Optimized• Industrial-Grade ABS Housing
• 50W High-Power Handling
• Plug-and-Play SMA Connection
Applications:
• 5G Small Cells & CPE
• WiFi 6 Routers/Extenders
• Drone FPV & Telemetry
• Industrial IoT Sensors
Customization Options Available:
• Frequency/Gain tweaks• Cable length adjustments
• Special connector requests
Contact us for bulk orders or technical data sheets!
