Frequency Range (MHz)
|
698-2700MHz /698-2700MHz
|
|
Polarization
|
Vertical
|
|
Gain (dBi)
|
5dbi
|
|
VSWR
|
≤1.5
|
|
Input Impedance (Ω)
|
50
|
|
Lightning Protection
|
DC grounding
|
|
Mechanical Characteristics
|
|
|

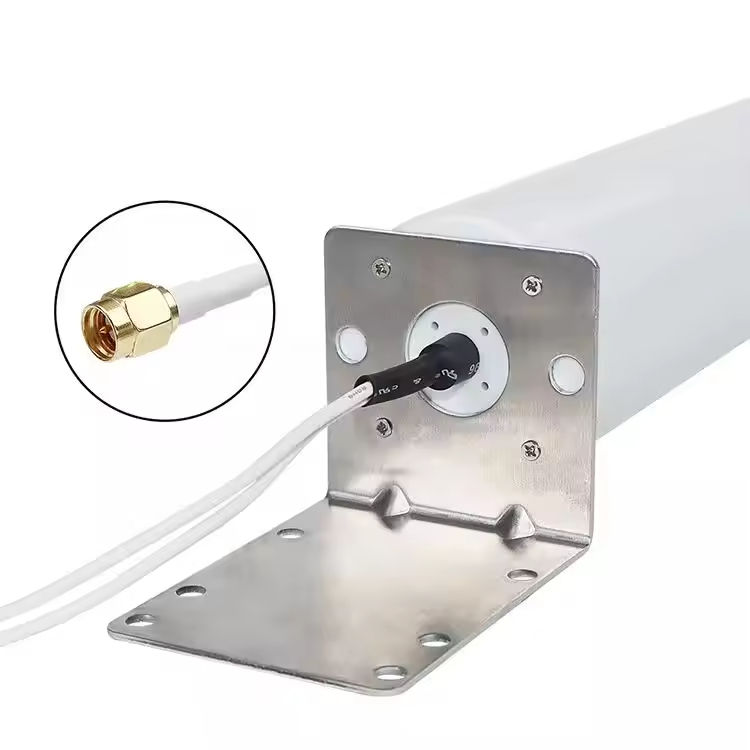

Connector type
|
SMA -male Connector
|
|

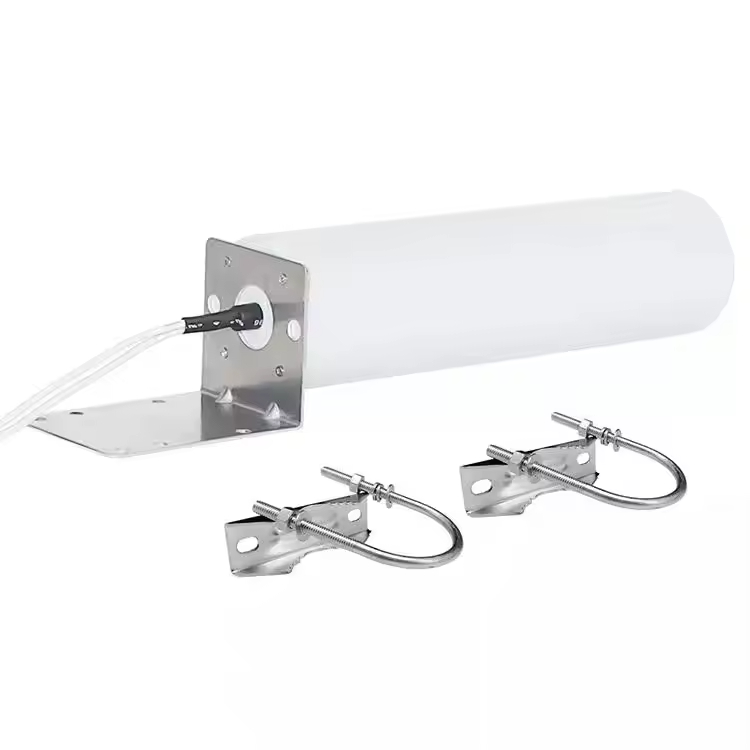

Mount Type
|
Mast Mount
|
|
Cable length (Meter)
|
5M (customizable)
|
|

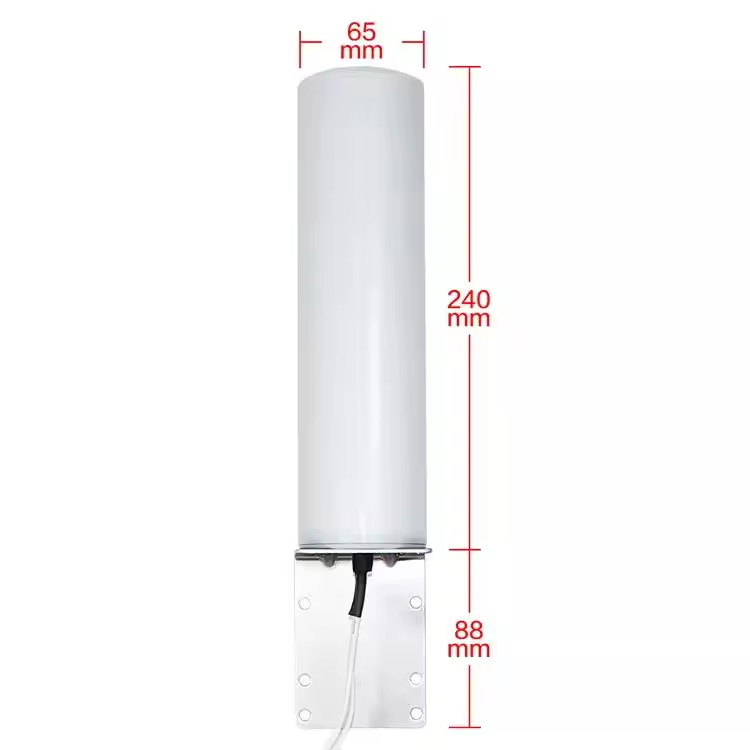

Dimensions (mm)
|
328*65
|
|
Environmental Characteristics
|
|
|
Noise Factor (dBi)
|
≤1.5
|
|
Waterproof
|
IP66
|
|
Operating Temperature (℃)
|
-30-+60°C
|
|
Relative Humidity
|
Up to 95%
|
|
ROHS Compliant
|
yes
|
|
Waterproof
|
IP66
|
|
Operating Temperature (℃)
|
-30-+75°C
|
|
Relative Humidity
|
Up to 95%
|
|
ROHS Compliant
|
yes
|
