Frequency Range
|
800-960/1710-2700MHz
|
|
VSWR
|
≤2.5
|
|
Gain
|
3dBi
|
|
Horizontal beam width
|
360°
|
|
Vertical beam width
|
55°
|
|
Polarization
|
Vertical
|
|
Input Impedance
|
50Ω
|
|
Maximum input power
|
50W
|
|
Lightning protection
|
DC Ground
|
|
Input connector type
|
N-Male
|
|

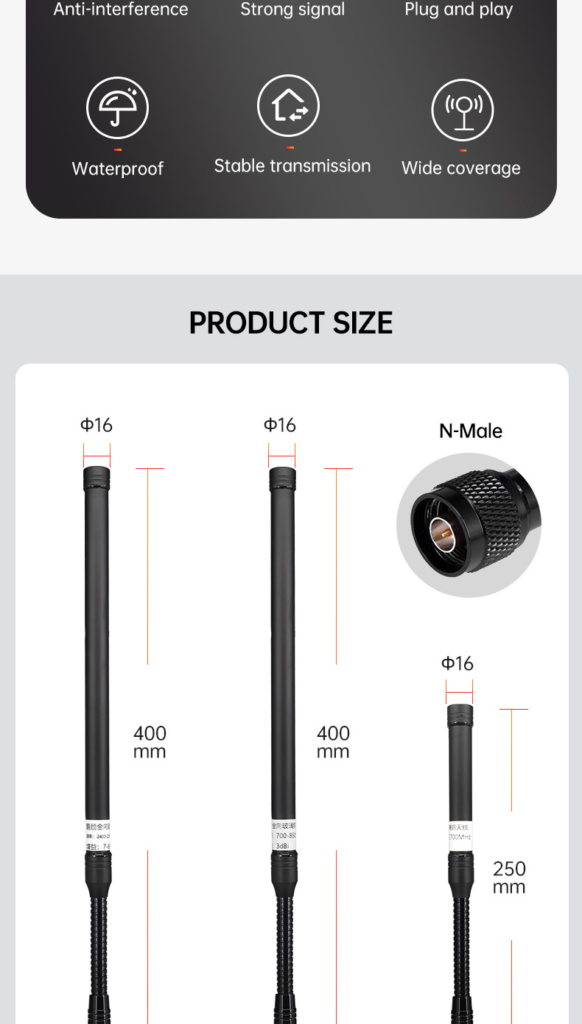

Dimensions
|
Ф16×250mm
|
|
Antenna weight
|
0.10kg
|
|
Radome material
|
Fiberglass
|
|
Radome color
|
Black
|
|
Operating temperature
|
-40°c～60°c
|
|
Rated Wind Velocity
|
60 m/s
|
|
Installation mode
|
Use with suction cup and other mounting seat
|
