Long Range High Gain 698–4000MHz Wide Band Waterproof Omni Directional Cylinder Outdoor Cellular 3G GSM LTE 4G 5G Antenna

Model: SDO0740G4CU

Long Range High Gain 698–4000MHz Wide Band Waterproof Omni Directional Cylinder Outdoor Cellular 3G GSM LTE 4G 5G Antenna

Specifications

Model SDO0740G4CU

Customization Standard Only

Material Fiberglass (FRP)

Key Features

✓ High-strength fiberglass construction
✓ Weather-resistant outdoor design
✓ Excellent RF performance
✓ Low maintenance requirements

Need a Quote?

Contact us for pricing, customization options, or technical specifications.

Send Inquiry Fast response within 24 hours

Product Description

Frequency Range (MHz)	698-4000MHz
Polarization	Vertical
Gain (dBi)	5dbi
VSWR	≤1.5
Input Impedance (Ω)	50
Maximum Power (W)	100
Connector type	Type N Female
Mount Type	Mast Mount
Cable length (Meter)	1M (customizable)
Radome material	UV-ABS
Mount way	Pole-Holding
Reflector material	Brass

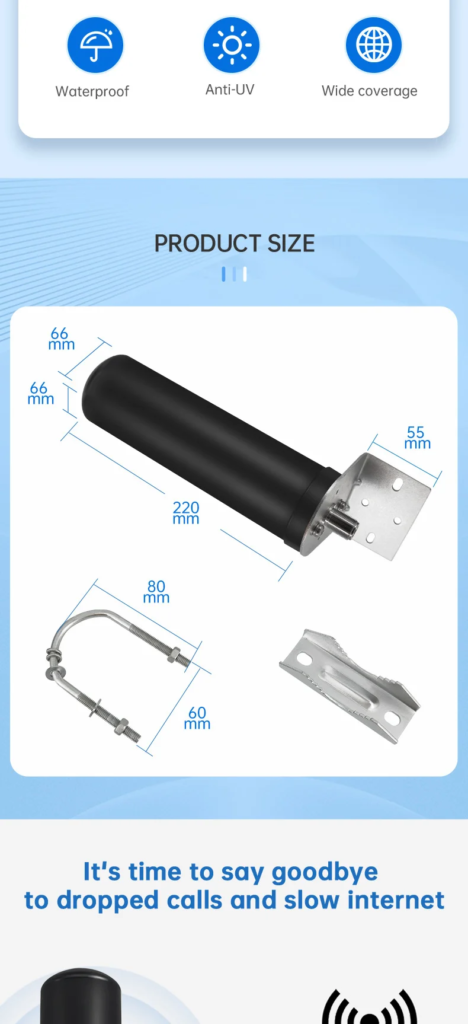

Dimensions (mm)	275*66mm
Noise Factor (dBi)	≤1.5
Waterproof	IP66
Operating Temperature (℃)	-30-+75°C
