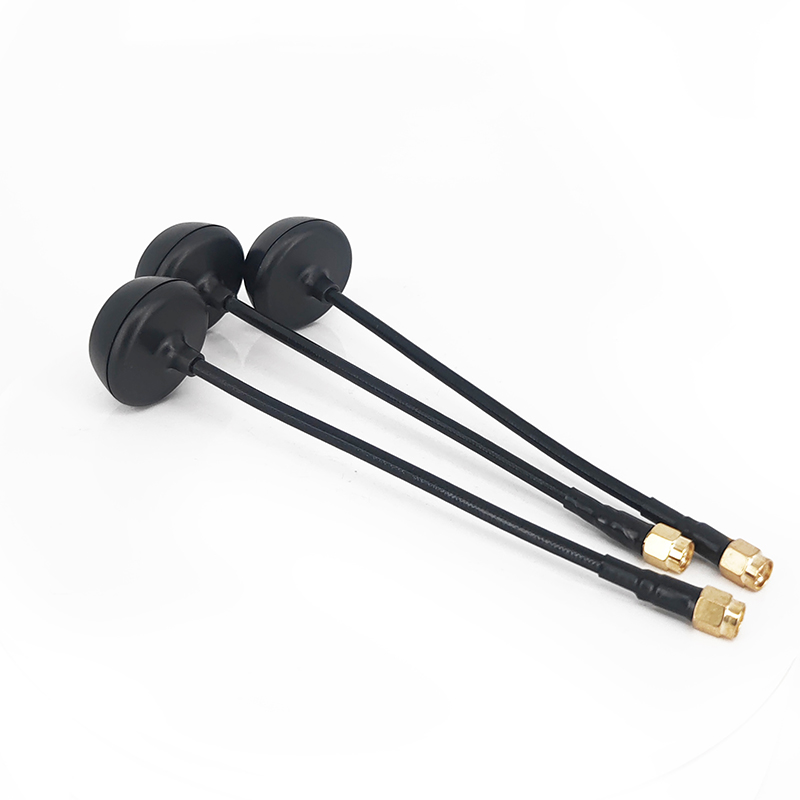

Mushroom 5700-5950MHz Outdoor Omnidirectional FPV Racing UAV Drone Image Transmission 5G Antenna with Circular Polarization

Model: SD00058MGT0004

Mushroom 5700-5950MHz Outdoor Omnidirectional FPV Racing UAV Drone Image Transmission 5G Antenna with Circular Polarization

Specifications

Model SD00058MGT0004

Customization Standard Only

Material Fiberglass (FRP)

Key Features

✓ High-strength fiberglass construction
✓ Weather-resistant outdoor design
✓ Excellent RF performance
✓ Low maintenance requirements

Need a Quote?

Contact us for pricing, customization options, or technical specifications.

Send Inquiry Fast response within 24 hours

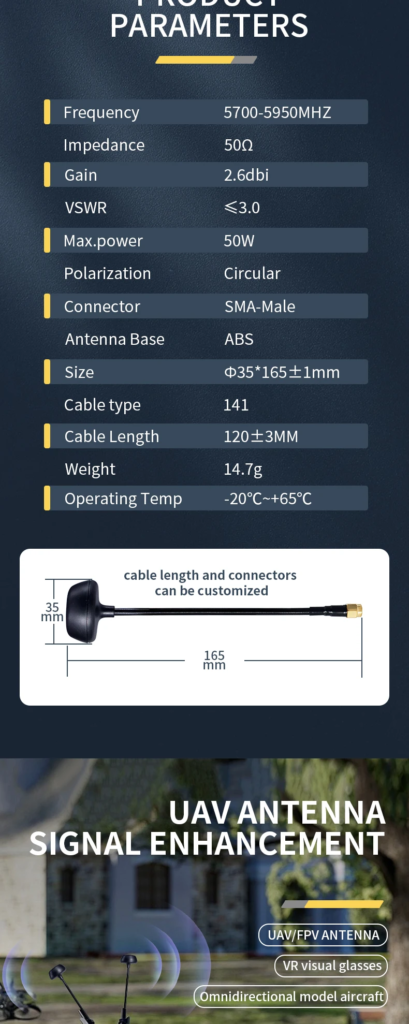

Product Description

Frequency Range (MHz)	5700-5950MHz
Gain (dBi)	2.6(max)
VSWR	≤3.0
Input Impedance (Ω)	50
Maximum Power (W)	50
Polarization	Circular
Connector type	SMA-Male
Cable Type	141
Cable length (Meter)	120±3MM
Material	ABS
Antenna Size	Ф35*165±1mm
Antenna Weight	14.7g
Operating Temperature (℃)	-20℃~+65℃
