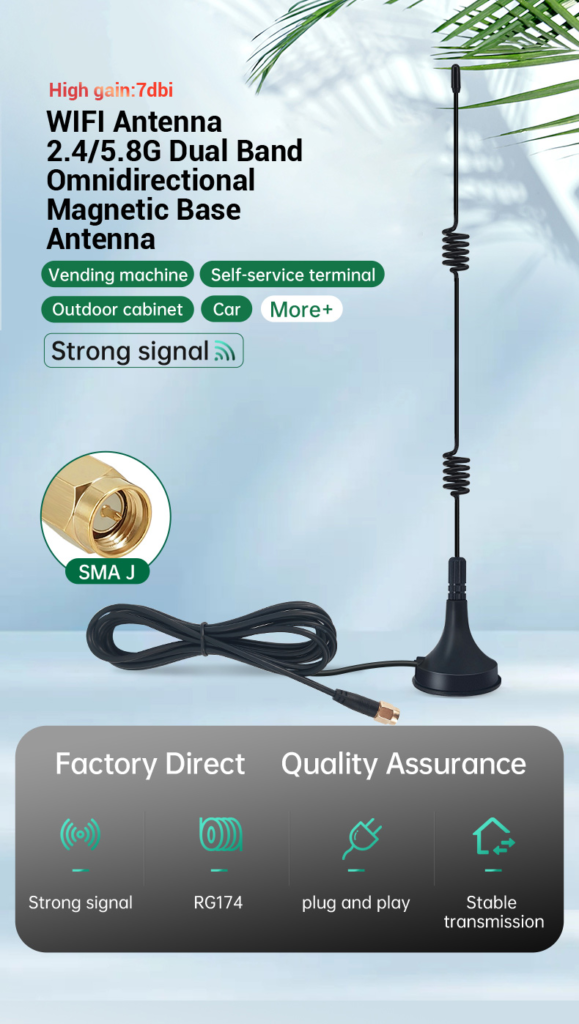

Frequency Range (MHz)
|
2400-2500/5725-5850MHz
|
|||
|
Gain (dBi)
|
7dBi
|
|||
|

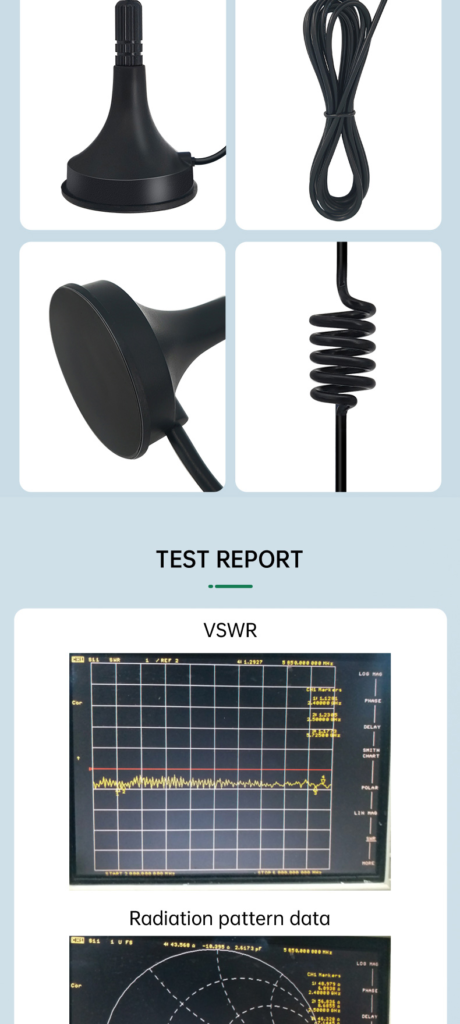

VSWR
|
≤2.0
|
|||
|
Input Impedance (Ω)
|
50
|
|||
|
Maximum Power (W)
|
50W
|
|||
|
Lightning Protection
|
DC grounding
|
|||
|
Connector type
|
SMA-Male( can be customized)
|
|||
|
Material
|
TPEE
|
|||
|
Mount way
|
Magnetic Base
|
|||
|

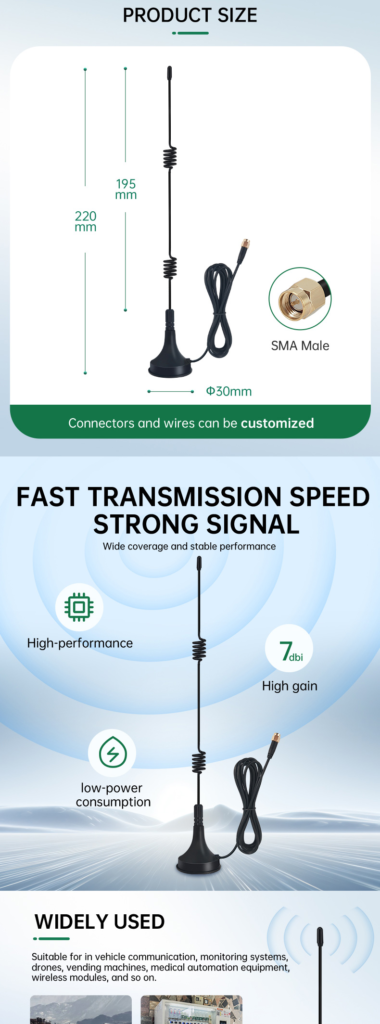

Dimensions (mm)
|
220*30mm
|
|||
|
Cable Length
|
3m
|
|||
|
Cable type
|
RG174
|
|||
|
Storage Temp
|
-30℃~+75℃
|
|||
|
Operating Temperature (℃)
|
–20℃~+65℃
|
|||
|
Relative Humidity
|
Up to 95%
|
|||
|
ROHS Complaint
|
yes
|
|||
