Frequency Range (MHz) |
915±10MHz |
| Gain (dBi) | 8dbi |
| VSWR | ≤2 |
| Horizontal beam width | 360° |
| Vertical beam width | 15° |
| Polarization | Vertical |
| Input Impedance | 50Ω |
| Maximum input power | 50W |
| Lightning protection | DC Ground |
| Input connector type | N-male/N-female |

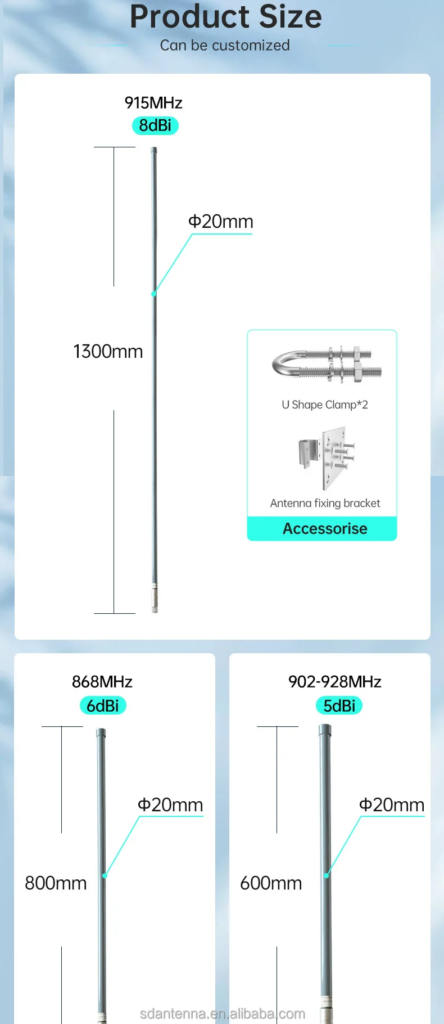

| Dimensions | Ф20×1300mm |
| Antenna weight | 0.43KG |
| Radome material | Fiberglass |
| Radome color | Gray/white/black ( can be customized ) |
| Operating temperature | -40°c～60°c |
| Rated Wind Velocity | 60 m/s |
| Mounting hardware | ￠35～￠60mm |
