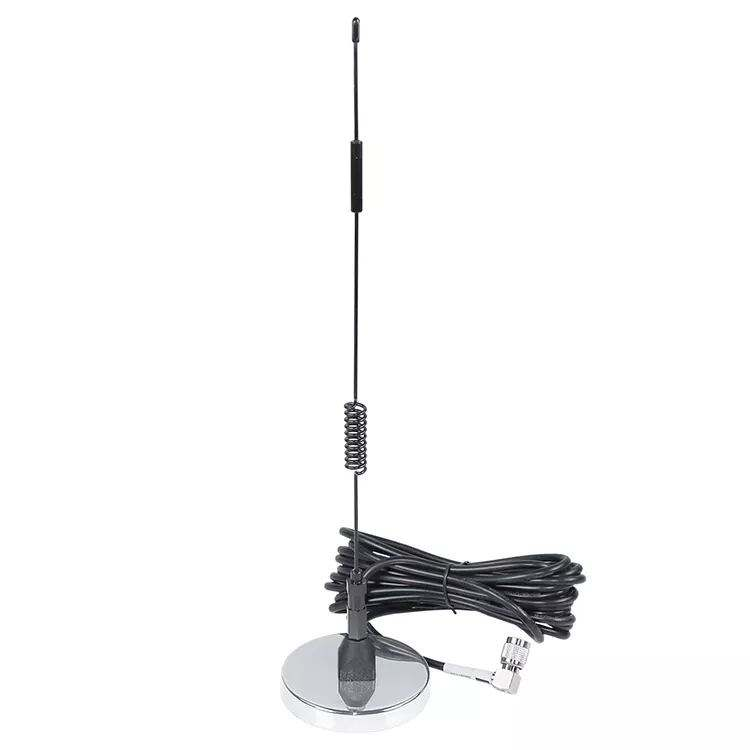

Frequency Range (MHz)
|
698-2700MHz
|
|
Polarization
|
Vertical
|
|
Gain (dBi)
|
5dbi
|
|
Horizontal Beamwidth (°)
|
360
|
|
VSWR
|
≤2.0
|
|
Input Impedance (Ω)
|
50
|
|
Maximum Power (W)
|
100
|
|
Lightening Protection
|
DC grounding
|
|

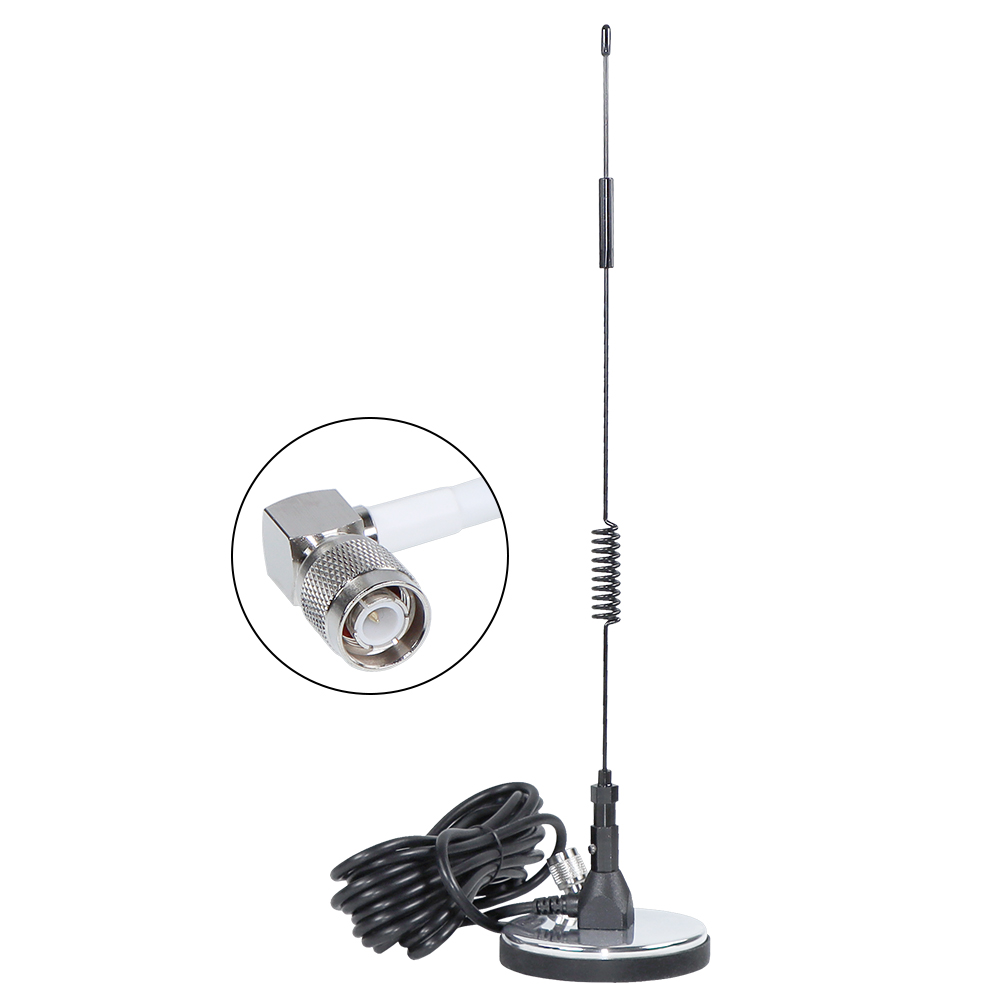

Connector type
|
TNC
|
|
Mount Type
|
RG58
|
|
Cable length (Meter)
|
4.5 (customizable)
|
|
Material
|
Iron chrome plated
|
|

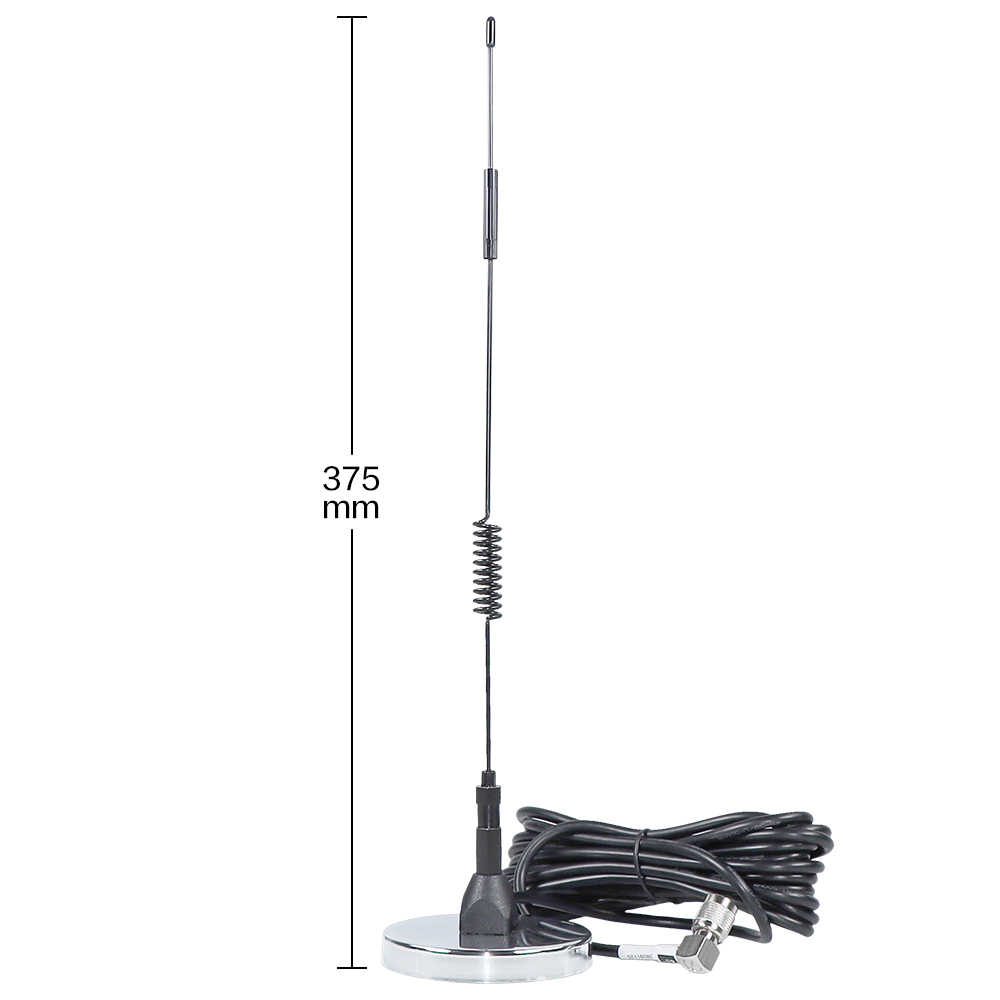

Dimensions (mm)
|
82*375mm
|
|

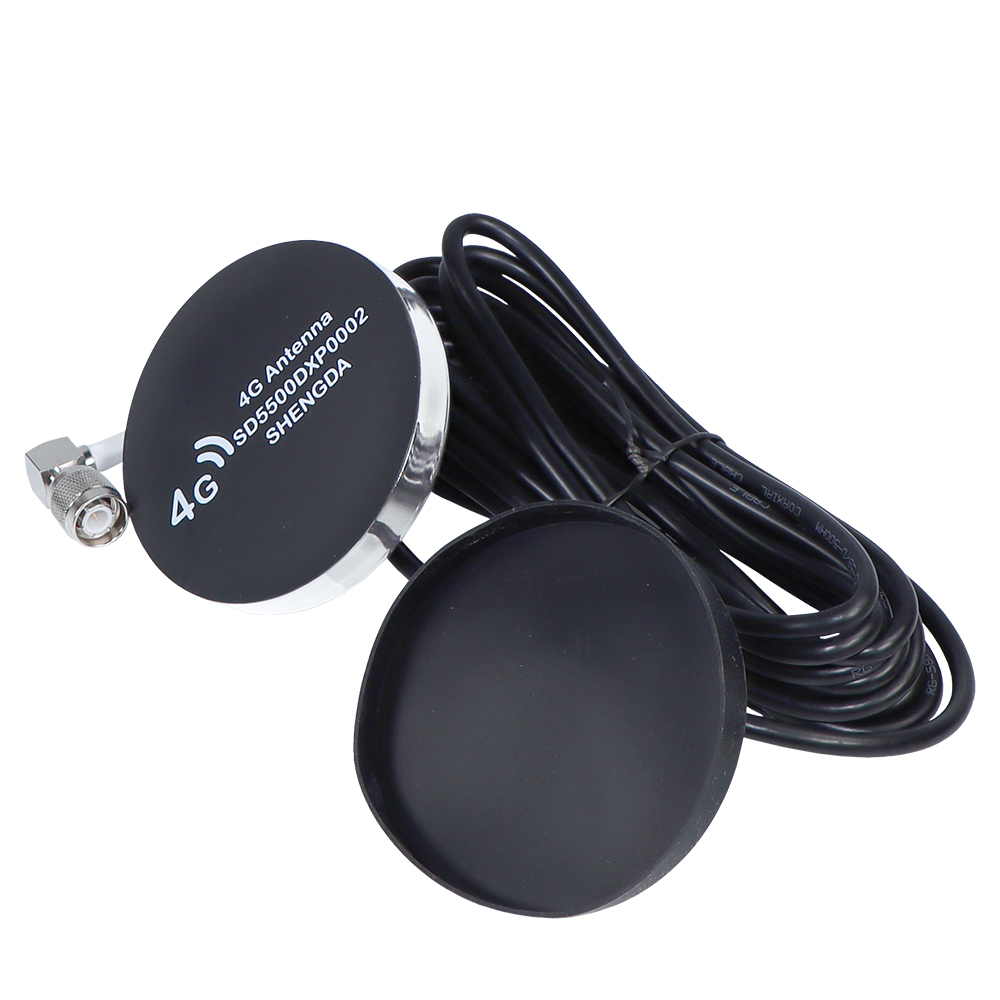

Mount way
|
Magnetic Mount
|
|
Operating Temperature (℃)
|
-30-+60°C
|
|
Relative Humidity
|
Up to 95%
|
|
ROHS Compliant
|
yes
|
