ITEM
|
VALUE
|
|
Frequency Range (MHz)
|
698-960/1710-4000MHz
|
|
Polarization
|
Vertical
|
|
Gain (dBi)
|
6/8dBi
|
|
Horizontal Beamwidth
|
65°
|
|
Vertical Beamwidth
|
55°
|
|
Nominal Impedance
|
50Ω
|
|
Maximum Power
|
100W
|
|
Lightening protection
|
DC Ground
|
|
Connector
|
N-Female/SMA-female or can be customized
|
|

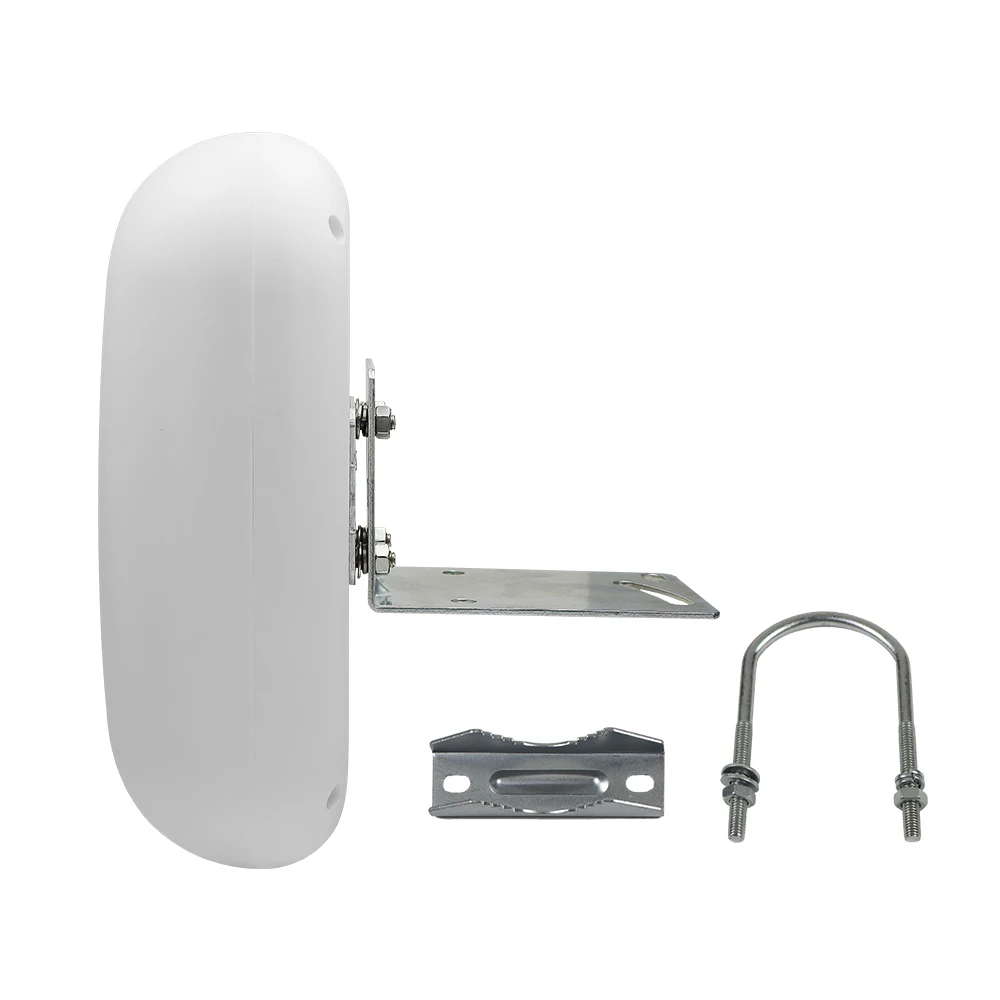

Mounting Type
|
Wall Mount
|
|

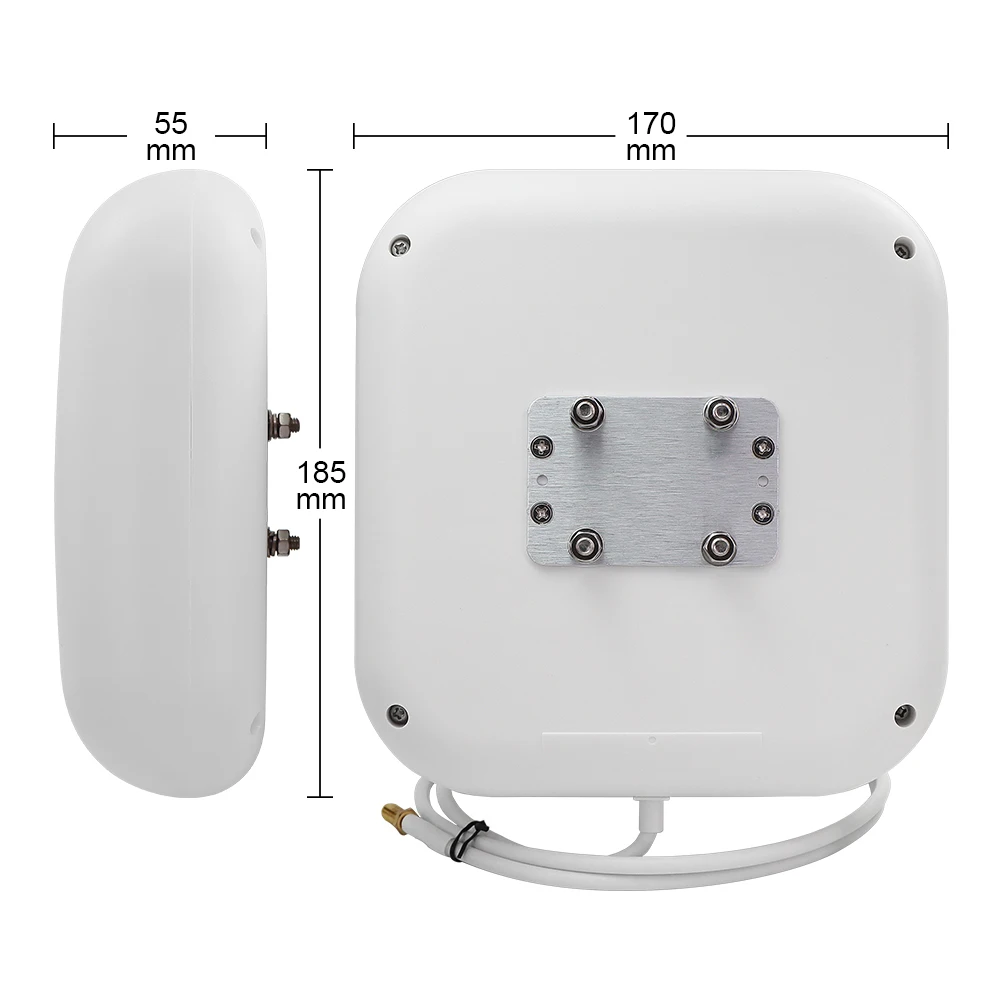

Dimensions
|
185x170x55mm
|
|
Weight
|
0.3 kg
|
|
Reflector Material
|
Aluminum
|
|
Radome Material
|
ABS
|
|
Relative Humidity
|
Up to 100%
|
|
Operating Temperature
|
-40~+60℃
|
|
Radome Color
|
White
|
