Product name
|

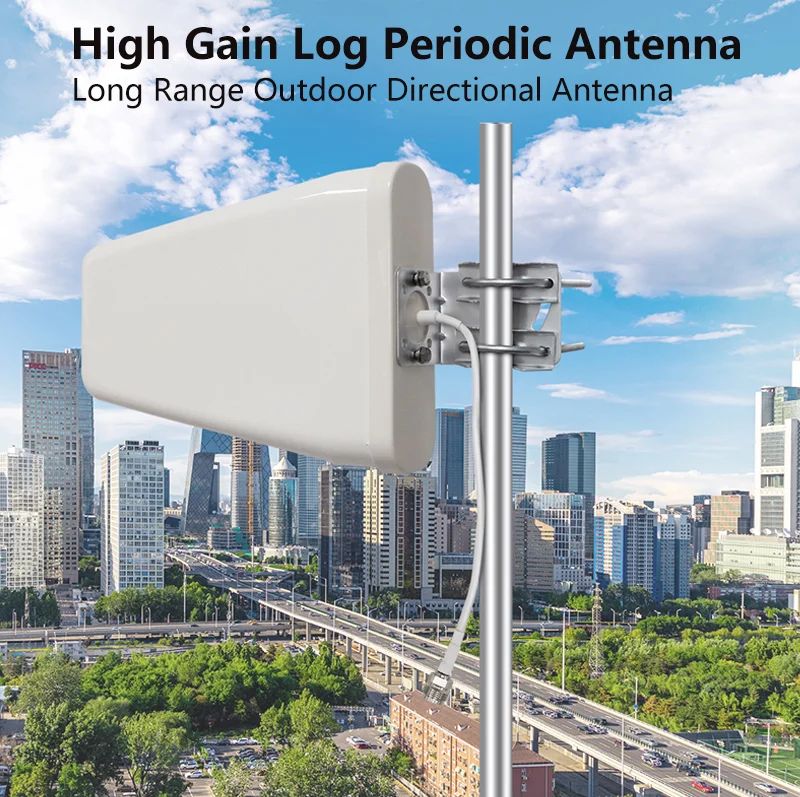

High Gain 11dbi 698-2700/3300-4000MHz Waterproof Directional Outdoor LPDA LTE 3G 4G 5G Log periodic Antenna
|
|
Frequency Range (MHz)
|
698-960MHz/1710-2700MHz/3300-4000MHz
|
|
Gain (dBi)
|
11dbi
|
|
Beamwidth [°]
|
65/60
|
|
Front to Back ratio [dB]
|
12/12
|
|
VSWR
|
≤1.5
|
|
Polarization
|
Vertical/ Horizontal
|
|
Max Power [W]
|
100
|
|
Impedance [Ω]
|
50
|
|
Lightning protection
|
Direct Ground
|
|

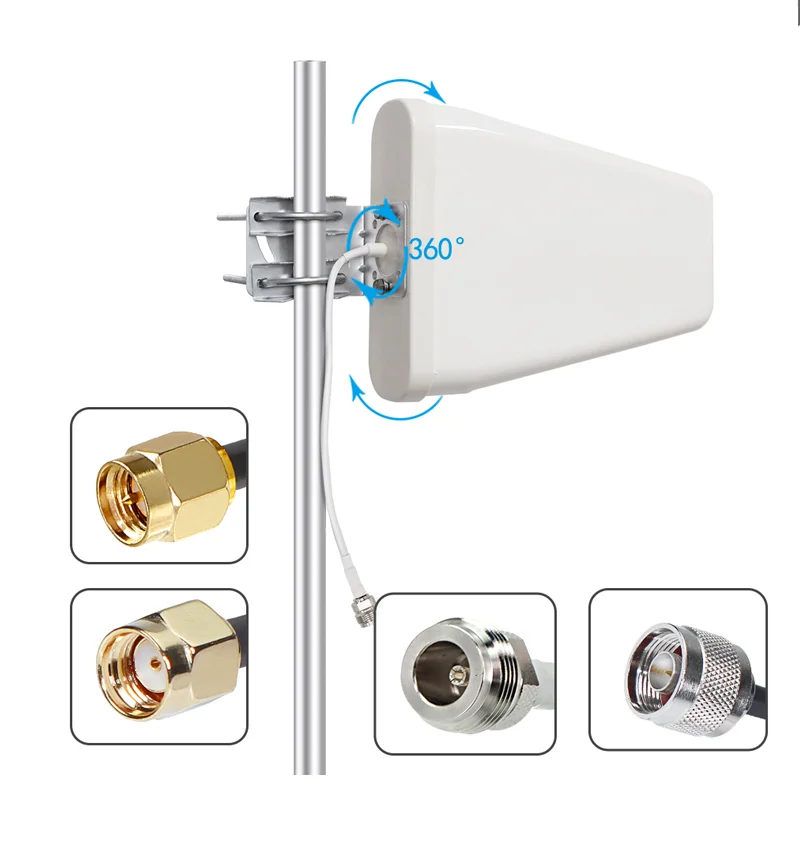

Connector
|
SMA male( can be customzied)
|
|
Max Wind Velocity [Km/h]
|
126
|
|
Antenna cover
|
ABS
|
|
Temperature [℃]
|
-40~+70
|
|
Dimensions [mm]
|
445×210×65
|
