Frequency Range (MHz)
|
1166-1179&1560-1580MHz
|
|
Gain (dBi)
|
28dBi
|
|
Noise Figure (dB)
|
1.5
|
|
VSWR
|
≤2.0
|
|
Input Impedance (Ω)
|
50
|
|
Classification of Waterproof
|
IP67
|
|
Polarization
|
RHCP
|
|
Connector type
|
SMA-Male
|
|
Voltage (V)
|
16
|
|
Application
|
Agriculture,drone, RTK measurement,positioning, intelligent device etc
|
|
Weight
|
18 ±2
|
|

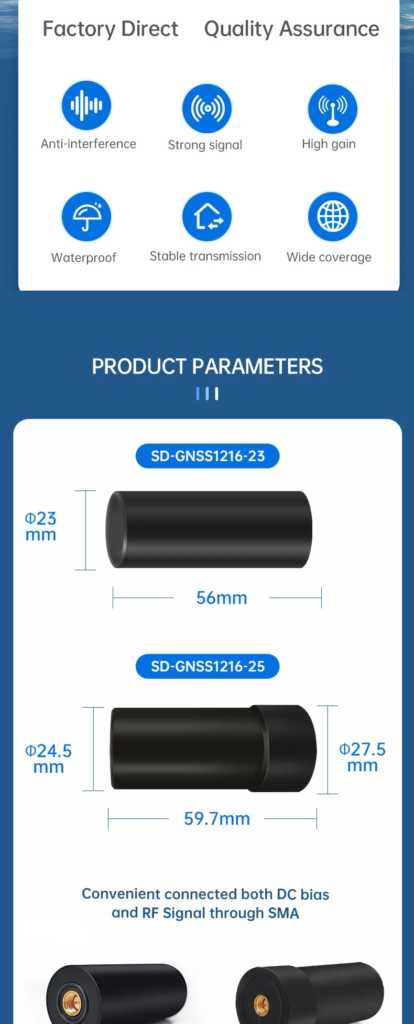

Dimensions (mm)
|
23*56mm
|
|
Operating Temperature (℃)
|
-40~+85
|
|
Storage Temperature
|
-40~+85
|
|
ROHS Complaint
|
yes
|
