ITEM |

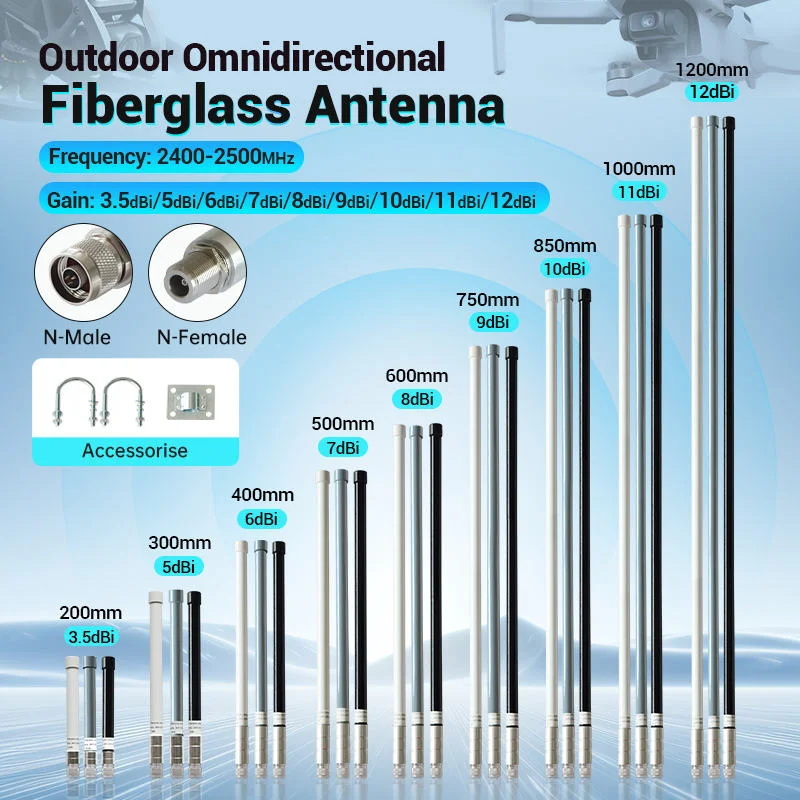

Outdoor Waterproof High Gain 10dbi 2.4G MIMO OmniDirectional Antenna |
| Electrical Specifications | |
| Frequency Range | 2400-2500MHz |
| VSWR | ≤2.0 |
| Gain | 10dBi |
| Horizontal beam width | 360° |
| Vertical beam width | 6.5° |
| Polarization | Vertical |
| Input Impedance | 50Ω |
| Maximum input power | 50W |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | N Male or N Female |
| Connector position | Bottom |
| Dimensions | Ф20*850mm |
| Antenna weight | 0.35kg |

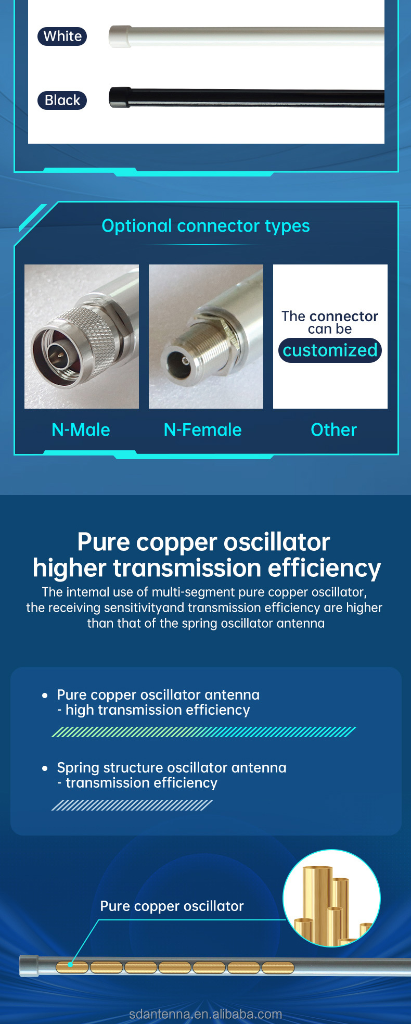

| Inner Material | Copper tube |
| Radome color | White,Black, Grey |
| Operating temperature | -40°c～60°c |
| Rated Wind Velocity | 60 m/s |
| Mounting hardware | Φ40～Φ90mm Pole mount |
100% Manufacturer OEM/ODM all kind of antennas as required
This means our customers can rest assured that
Products they order 100% Guranteed with better after-sales directly
