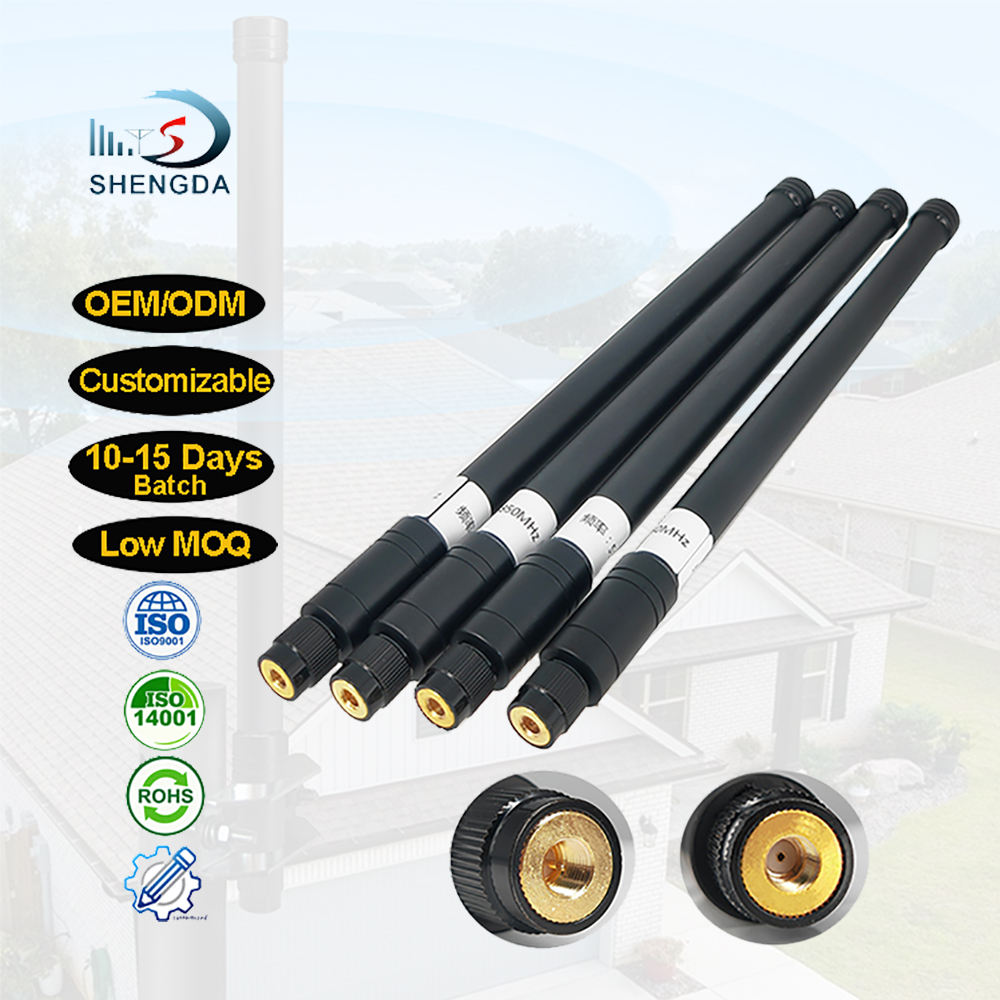

Dual Band 5dbi 2400-2500/5150-5850MHz Fiberglass Antenna OmniDirectional Communication Antenna Outdoor Waterproof WiFi Antenna

Model: SD16-2458V-G5B300-SMA-J

Dual Band 5dbi 2400-2500/5150-5850MHz Fiberglass Antenna OmniDirectional Communication Antenna Outdoor Waterproof WiFi Antenna

Specifications

Model SD16-2458V-G5B300-SMA-J

Customization Standard Only

Material Fiberglass (FRP)

Key Features

✓ High-strength fiberglass construction
✓ Weather-resistant outdoor design
✓ Excellent RF performance
✓ Low maintenance requirements

Need a Quote?

Contact us for pricing, customization options, or technical specifications.

Send Inquiry Fast response within 24 hours

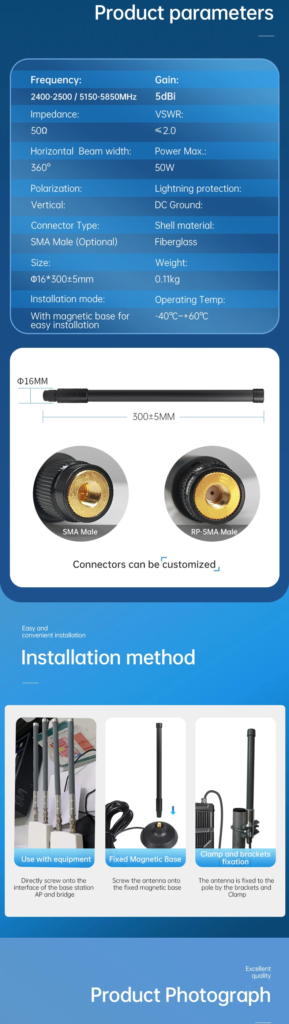

Product Description

Frequency Range	2400-2500/5150-5850MHz
Gain	5dBi
Size	16x300mm
VSWR	≤2.0
Material	Fiberglass
Impedance	50Ω
Max power	50W
Radiation	Omin Directional
Connector	SMA Male
Polarization	Vertical
Lightning protection	DC Ground
Horizontal beam width	360°
Vertical beam width	30°
Operating temperature	-40°c ～ 60°c
Rated Wind Velocity	60 m/s
