ITEM |

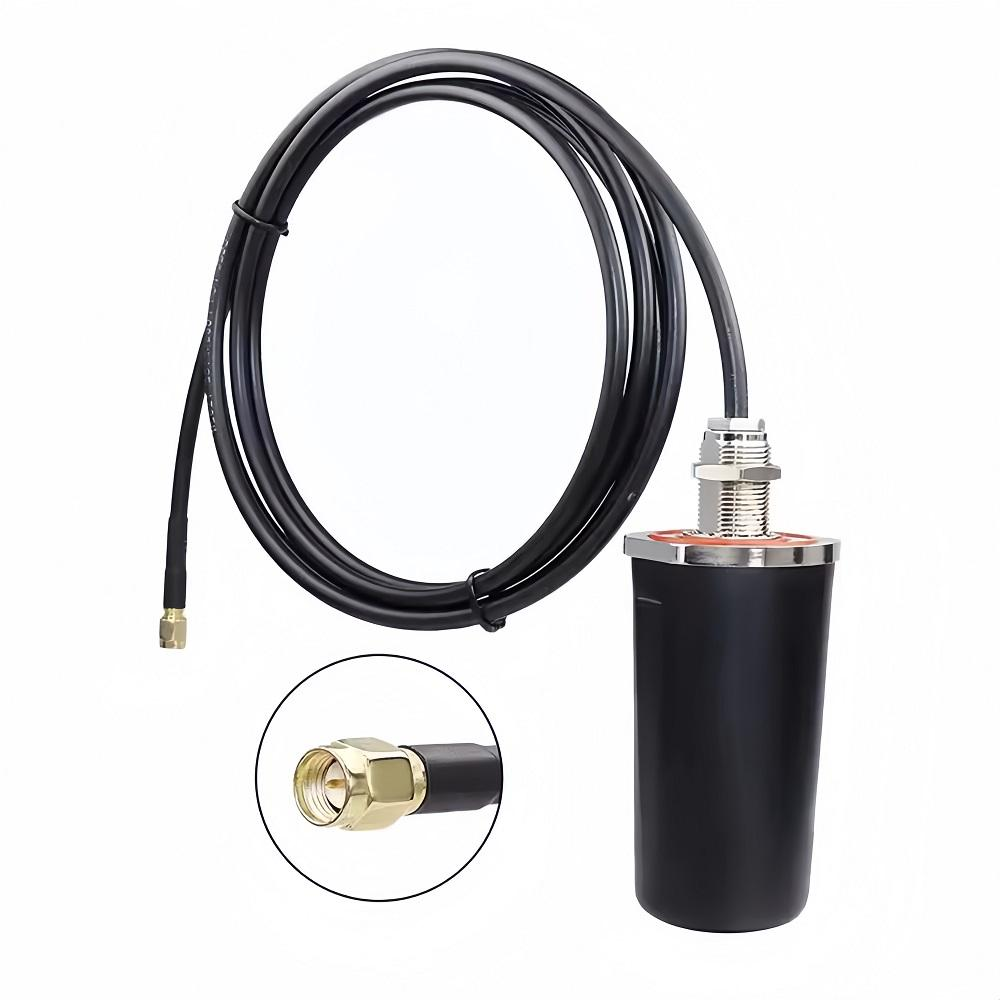

High Gain 650-6000MHz Omnidirectional Waterproof Outdoor Cellular Cabinet Screw Mount Customizable Factory 3G LTE 4G 5G Antenna |
|
Frequency Range (MHz) |
698-6000MHz |
| Polarization |
Omni |
| Gain (dBi) |
5/8 dbi |
| 3dB Beamwidth | H: 360° E: 60° |
| VSWR |
≤2.1 |
| Input Impedance (Ω) |
50 |
| Maximum Power (W) |
10 |
|
Lightening Protection |
DC grounding |
| Connector type |
N-Female |
| Mount Type |
Screw |
| Cable length (Meter) |
1±0.03M (customizable) |
| Radome material |
ABS |
| Dimensions (mm) |
43x83mm±1MM |
| Weight (g) |
380 |
| Operating Temperature (℃) | -30-+60°C |
| Relative Humidity | Up to 95% |
| ROHS Compliant | yes |
100% Manufacturer OEM/ODM all kind of antennas as required
This means our customers can rest assured that
Products they order 100% Guranteed with better after-sales directly
