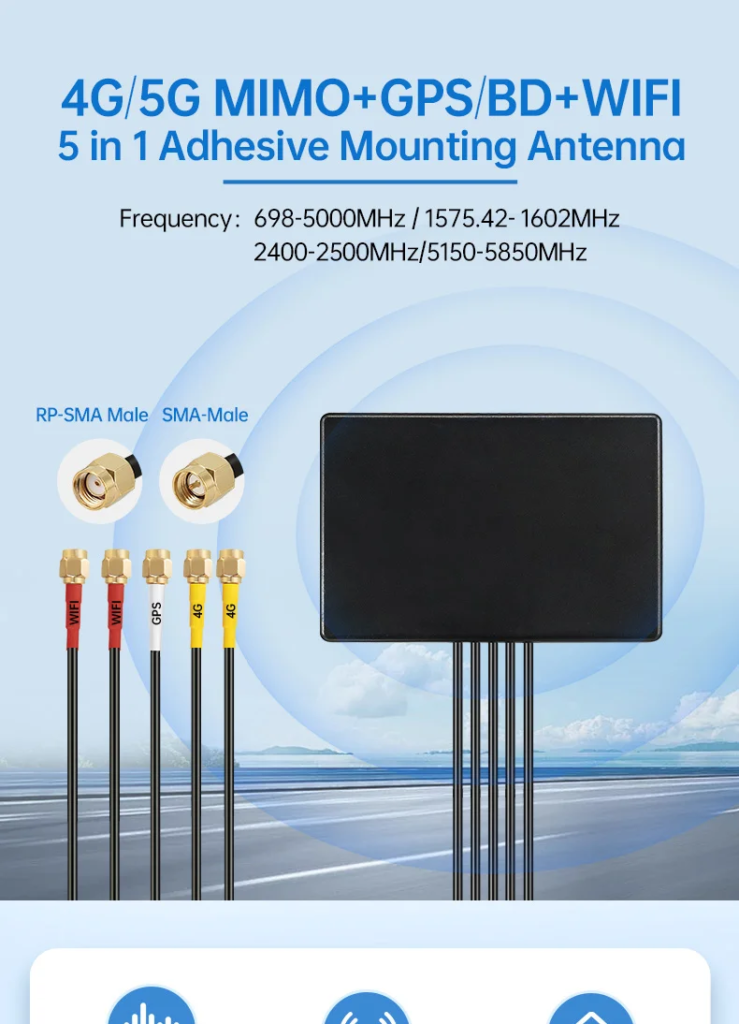

Frequency Range (MHz)
|
698-5000/1575.42-1602/2400-2500MHz/5150-5850MHz
|
|
Gain (dBi)
|
3/27/3
|
|
Polarization Type
|
Linear,Vertical
|
|
Horizontal Beamwidth (°)
|
360
|
|
VSWR
|
≤2.0
|
|
Input Impedance (Ω)
|
50
|
|
Maximum Power (W)
|
50
|
|
Connector type
|
SMA-Male ( can be customized)
|
|
Cable Type
|
RG174
|
|
Cable length (Meter)
|
1m±0.03M
|
|

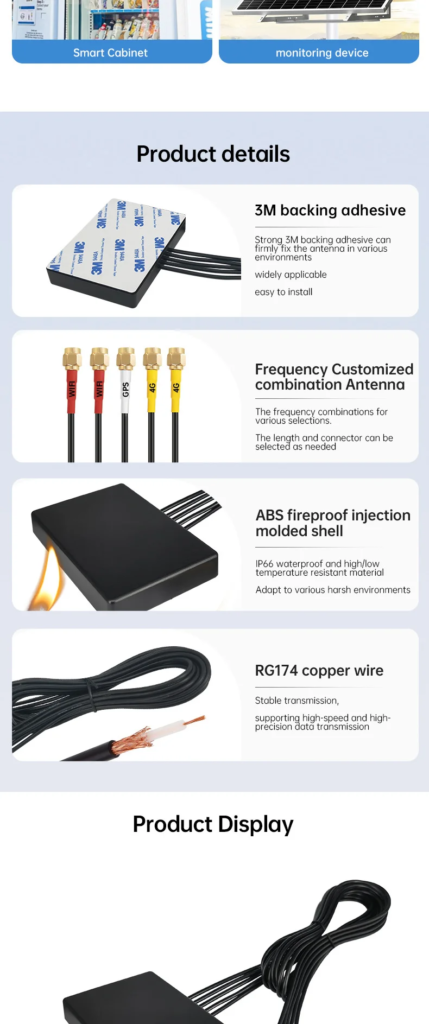

Radome Material
|
ABS
|
|
Aerial Color
|
Black
|
|

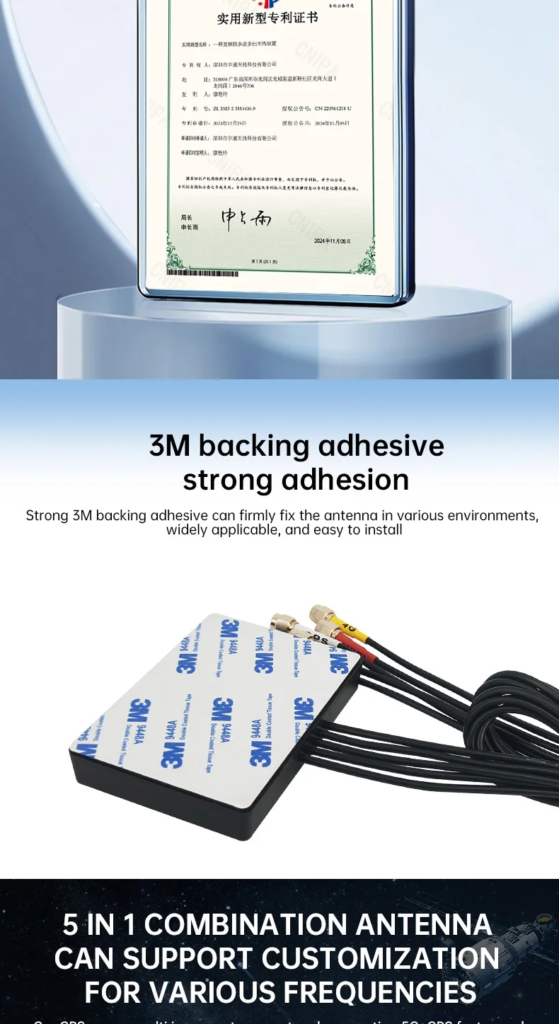

Mount way
|
adhesive Mounting
|
|

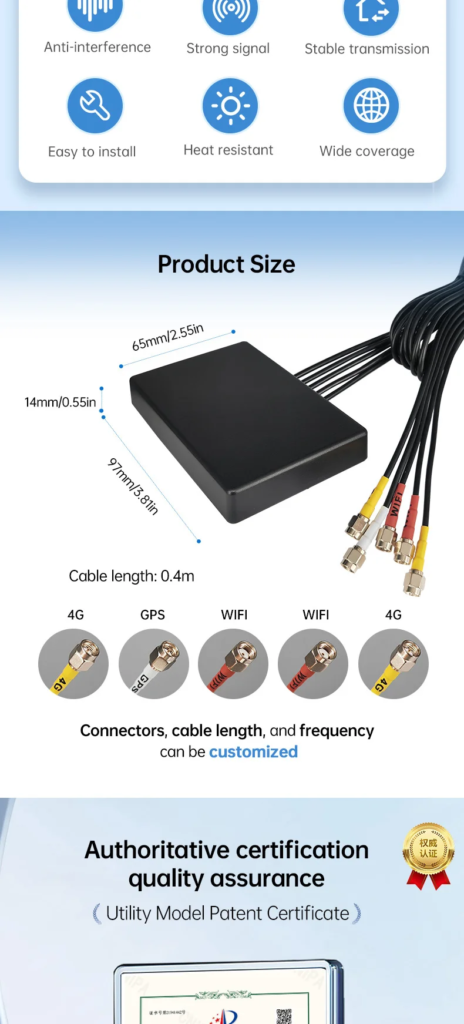

Dimensions (mm)
|
97mm*65mm*14mm*±2mm
|
|
Waterproof
|
IP66
|
|
Operating Temperature (℃)
|
-30℃~+75℃
|
|
Relative Humidity
|
Up to 95%
|
|
ROHS Compliant
|
yes
|
