Frequency Range (MHz)
|
698-2700MHz
|
|
Gain (dBi)
|
≥3
|
|
VSWR
|
≤2
|
|
Input Impedance (Ω)
|
50
|
|
Maximum Power (W)
|
50
|
|
Power
|
DC5V
|
|
Power consumption
|
≤30mA
|
|
Lightning Protection
|
DC grounding
|
|

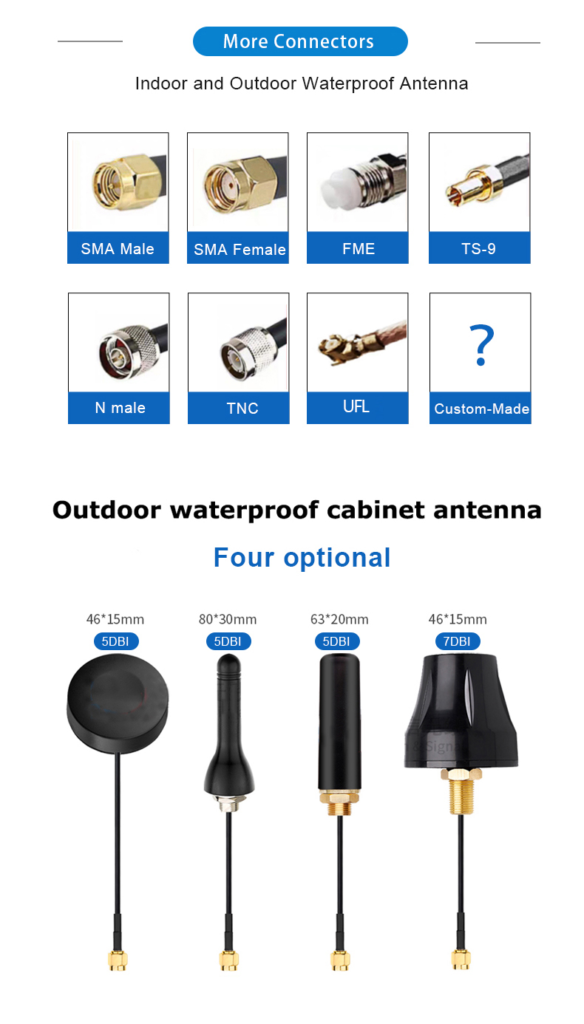

Connector type
|
U.FL/MHF1
|
|

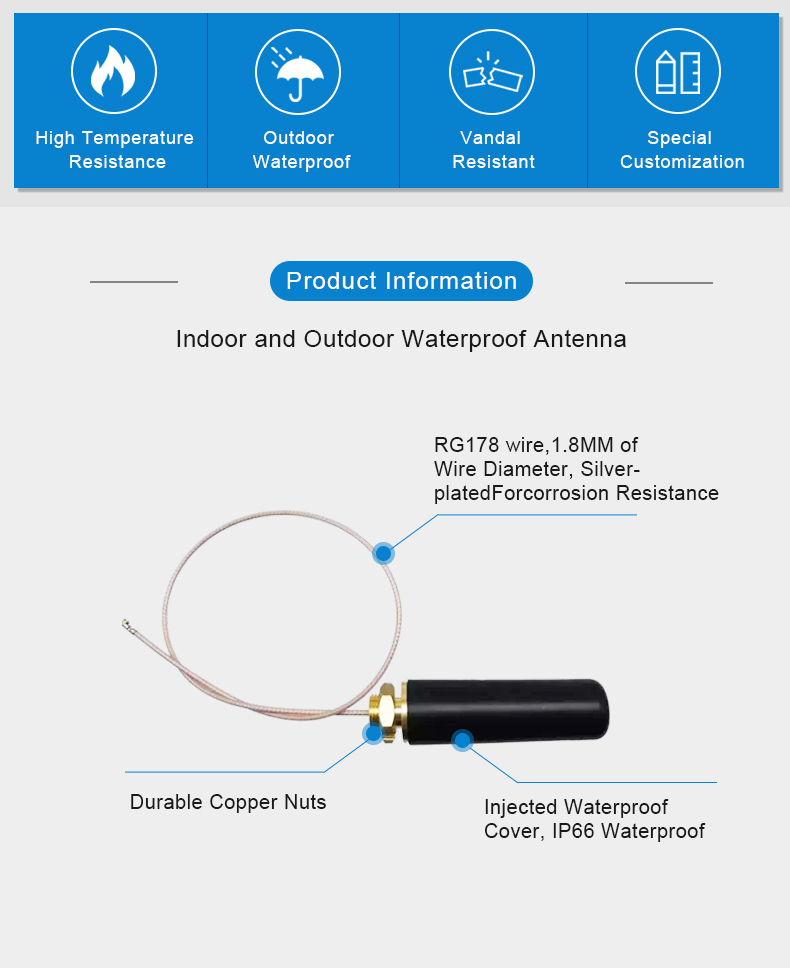

Cable Type
|
RG178
|
|
Cable length (Meter)
|
0.3 or customizable
|
|
Material
|
ABS
|
|
Mount way
|
Screw
|
|
Dimensions (mm)
|
Φ19*70mm
|
|
Weight (g)
|
51
|
|
Noise Factor (dBi)
|
≤1.5
|
|
Operating Temperature (℃)
|
-40–60°
|
|
Relative Humidity
|
Up to 95%
|
|
ROHS Compliant
|
yes
|
