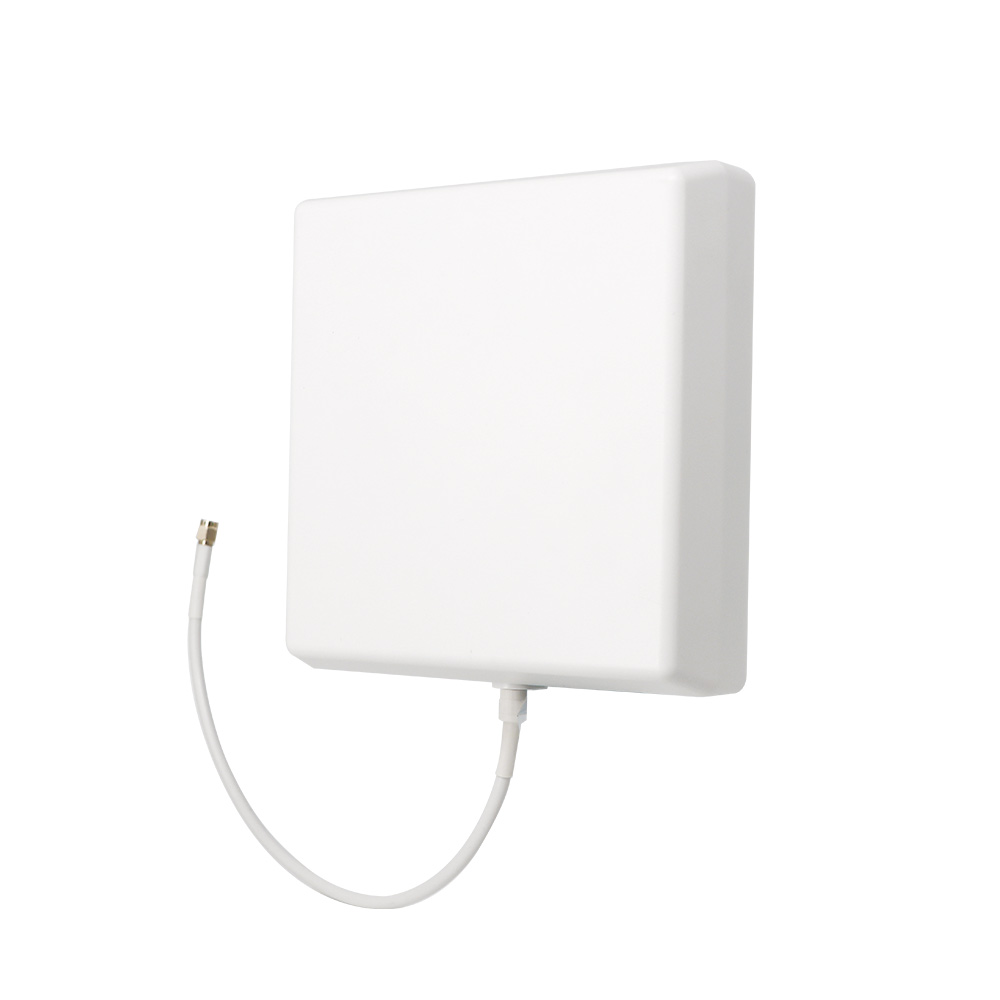

2400-2500MHz 12dBi Waterproof Outdoor Direcational Wall Mount 5G 2.4Ghz Wifi Panel Antenna

Model: TDJ-P24Z12-026

2400-2500MHz 12dBi Waterproof Outdoor Direcational Wall Mount 5G 2.4Ghz Wifi Panel Antenna

Specifications

Model TDJ-P24Z12-026

Customization Standard Only

Material Fiberglass (FRP)

Key Features

✓ High-strength fiberglass construction
✓ Weather-resistant outdoor design
✓ Excellent RF performance
✓ Low maintenance requirements

Need a Quote?

Contact us for pricing, customization options, or technical specifications.

Send Inquiry Fast response within 24 hours

Product Description

Frequency Range	2400-2500MHz
Polarization	Vertical
Gain	12dBi
VSWR	≤1.5
Horizontal Beamwidth	65°
Vertical Beamwidth	55°
Nominal Impedance	50Ω
Maximum Power	100W
Connector	SMA-male or can be customized
Mounting Type	Wall Mount
Dimensions	143x121x42mm
Radome Material	ABS
Radome Color	White
Operating Temperature	-40~+75℃
