ITEM
|

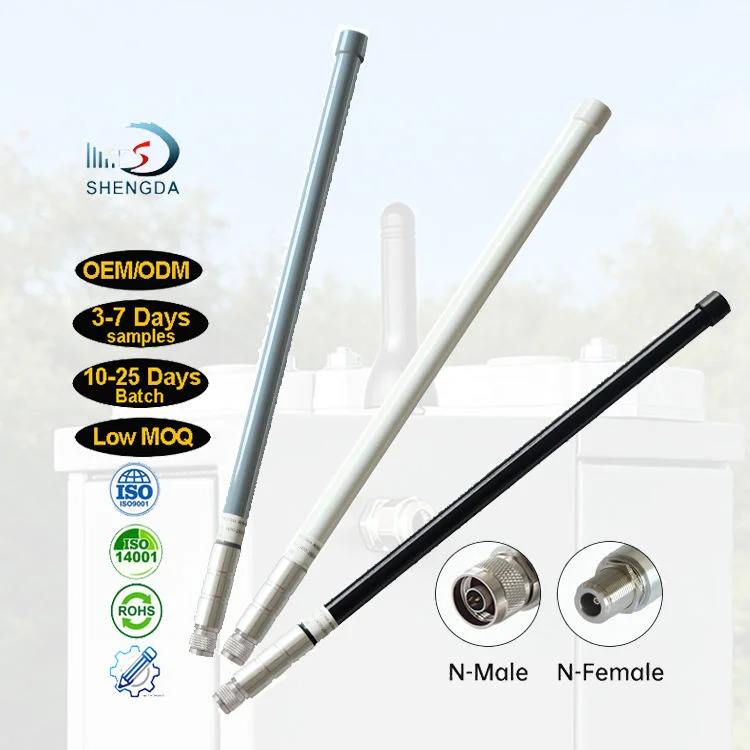

Outdoor Waterproof 2.4G OmniDirectional Fiberglass Antenna
|
|
Electrical Specifications
|
|
|
Frequency Range
|
2400-2500Mhz
|
|
VSWR
|
≤1.8
|
|
Gain
|
8dBi
|
|
Horizontal beam width
|
360°
|
|
Vertical beam width
|
18°
|
|
Polarization
|
Vertical
|
|
Input Impedance
|
50Ω
|
|
Maximum input power
|
50W
|
|
Lightning protection
|
DC Ground
|
|
Mechanical Specifications
|
|
|
Input connector type
|
N-Male or N Female
|
|
connector position
|
Bottom
|
|
Dimensions
|
Ф20× 600mm
|
|
Antenna weight
|
0.23kg
|
|
Operating temperature
|
-40°c～60°c
|
|
Rated Wind Velocity
|
60 m/s
|
|
Mounting hardware
|
Φ35～Φ60mm
|
100% Manufacturer OEM/ODM all kind of antennas as required
This means our customers can rest assured that
Products they order 100% Guranteed with better after-sales directly
The listing is for 2.4G Fiberglass antenna 8dBi
The size is 20*600mm
