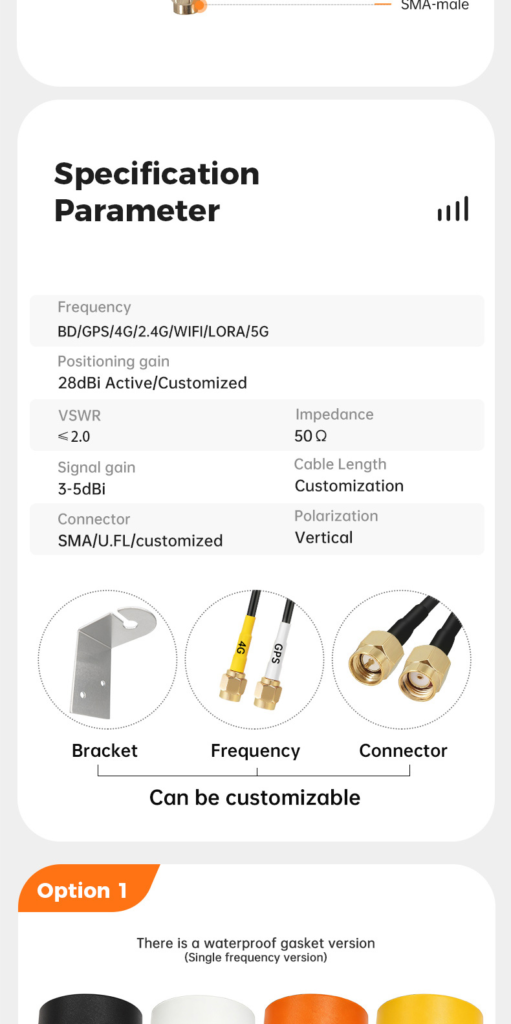

Frequency Range (MHz)
|
1575.42MHz/LORA 900-1800MHz/2.4G/4G/5G ( Frequency can be customized)
|
|
Gain (dBi)
|
28/3
|
|
Polarization Type
|
Vertical
|
|
VSWR
|
≤1.5
|
|
Input Impedance (Ω)
|
50
|
|
Maximum Power (W)
|
50
|
|
Connector type
|
SMA-J or can be customized
|
|
Cable Type
|
RG174
|
|
Cable length (Meter)
|
1m ±0.03M or can be customized
|
|
Radome Material
|
ABS
|
|
Aerial Color
|
Black, White, Yellow , Orange
|
|
Mount way
|
Screw
|
|

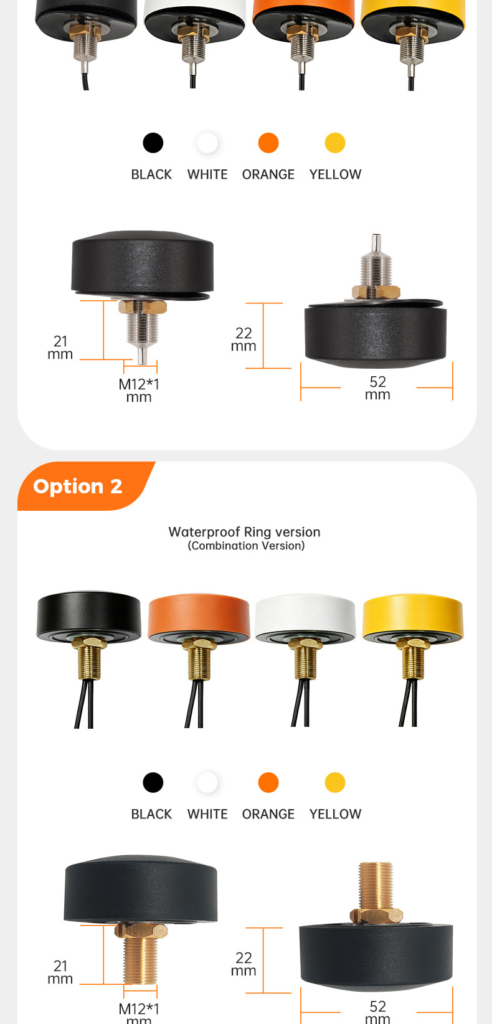

Dimensions (mm)
|
Φ52*22mm
|
|
Waterproof
|
IP66( IP67 can be customized )
|
|
Noise Factor (dBi)
|
≤1.5
|
|
Operating Temperature (℃)
|
-40–60°
|
|
Relative Humidity
|
Up to 95%
|
|
ROHS Complaint
|
yes
|
