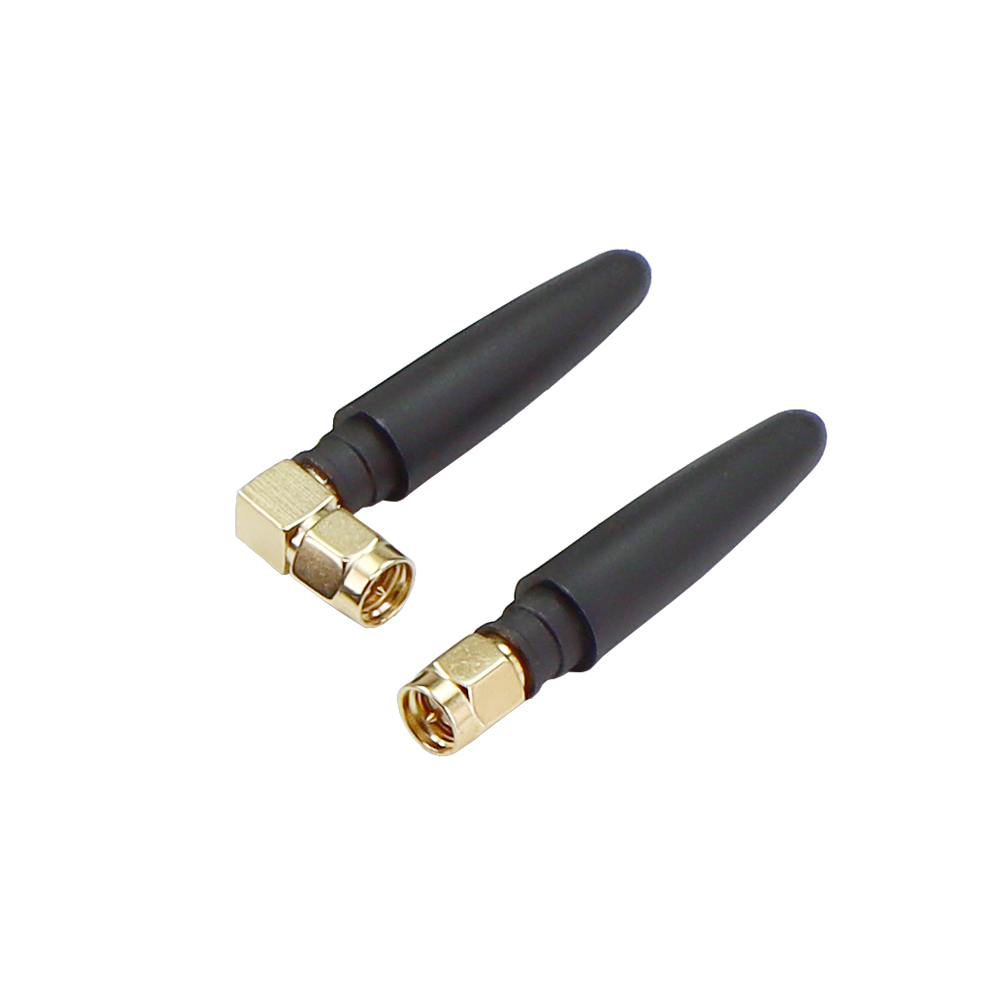

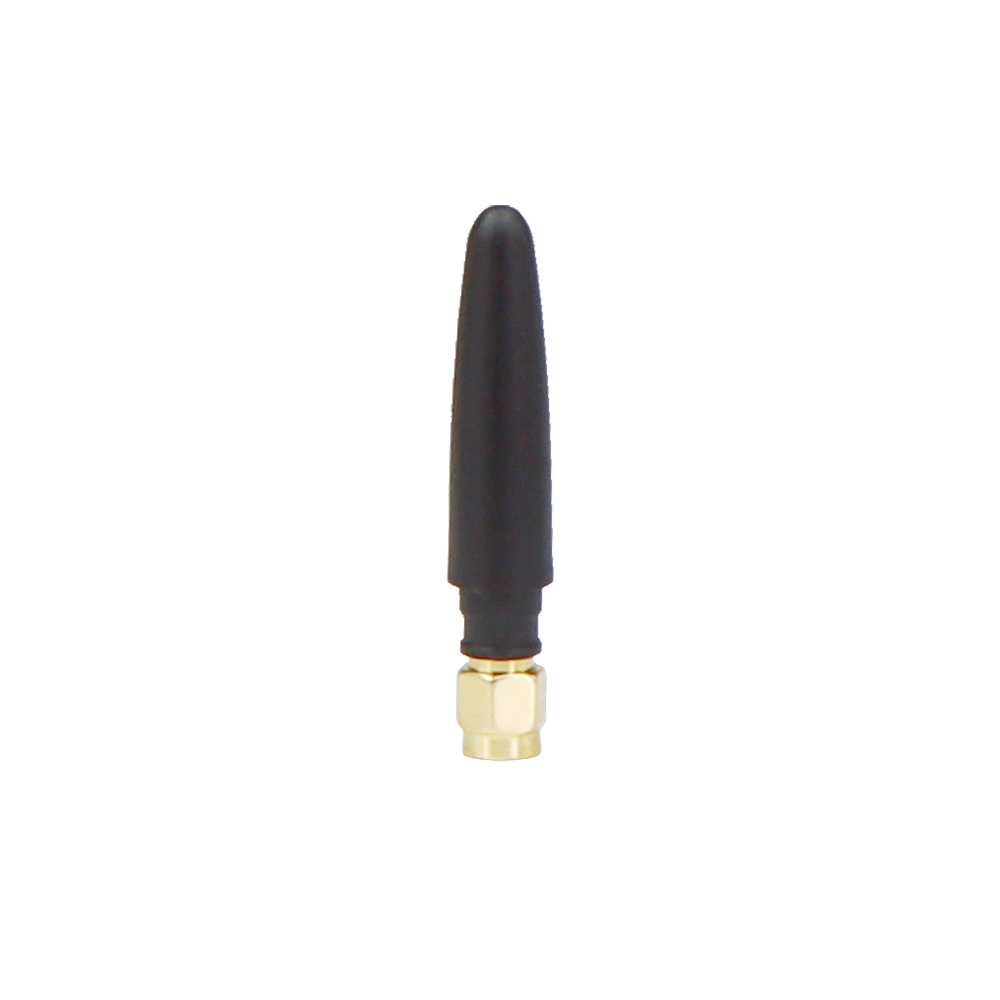

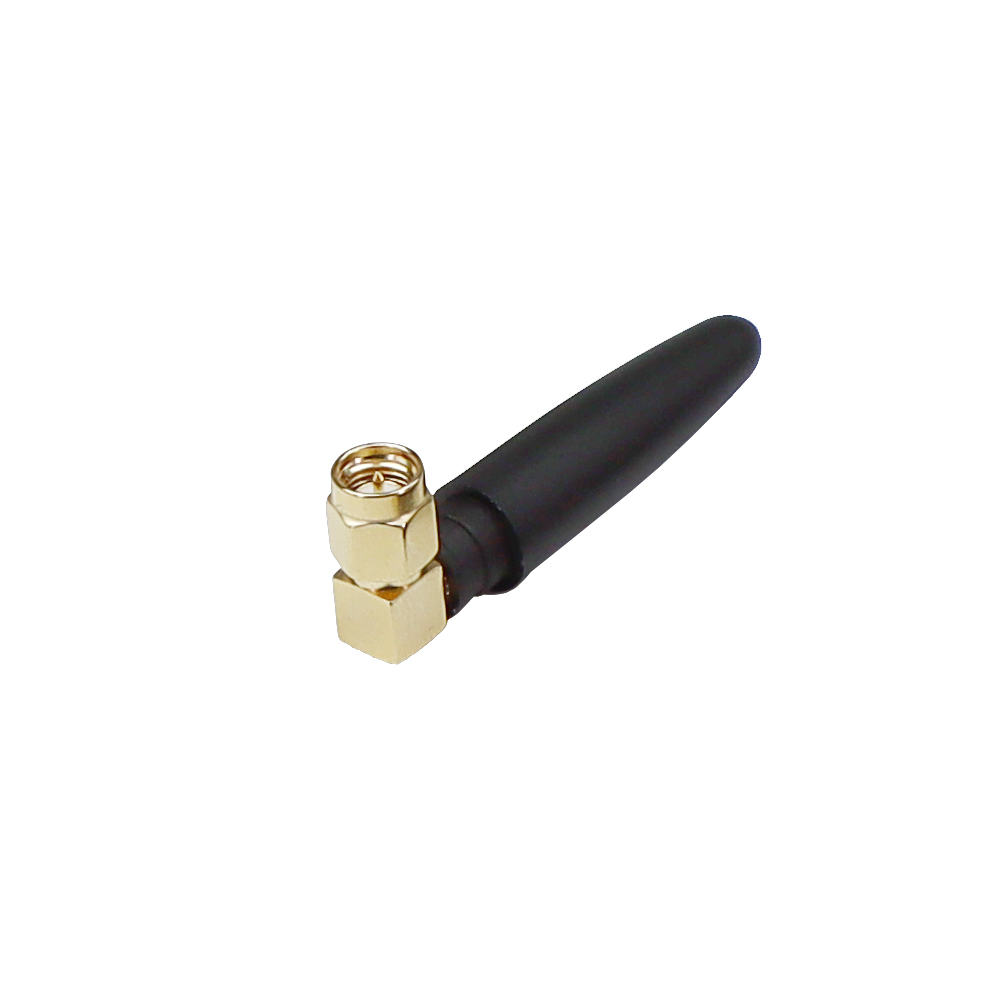

High Gain External Wireless Router Small Antenna Dual Band 2.4G 5.8G Omni Directional Wifi 2.4GHz 5G Rubber Stubby Antenna

Model: TSD-IR2425-003

High Gain External Wireless Router Small Antenna Dual Band 2.4G 5.8G Omni Directional Wifi 2.4GHz 5G Rubber Stubby Antenna

Specifications

Model TSD-IR2425-003

Customization Standard Only

Material Fiberglass (FRP)

Key Features

✓ High-strength fiberglass construction
✓ Weather-resistant outdoor design
✓ Excellent RF performance
✓ Low maintenance requirements

Need a Quote?

Contact us for pricing, customization options, or technical specifications.

Send Inquiry Fast response within 24 hours

Product Description

Frequency Range (MHz)	2400-2500 MHz
Gain (dBi)	2-3dbi
Horizontal Beamwidth (°)	360
VSWR	≤2
Input Impedance (Ω)	50
Maximum Power (W)	50
Connector type	SMA-J
Material	PVC
Mount way	Screw

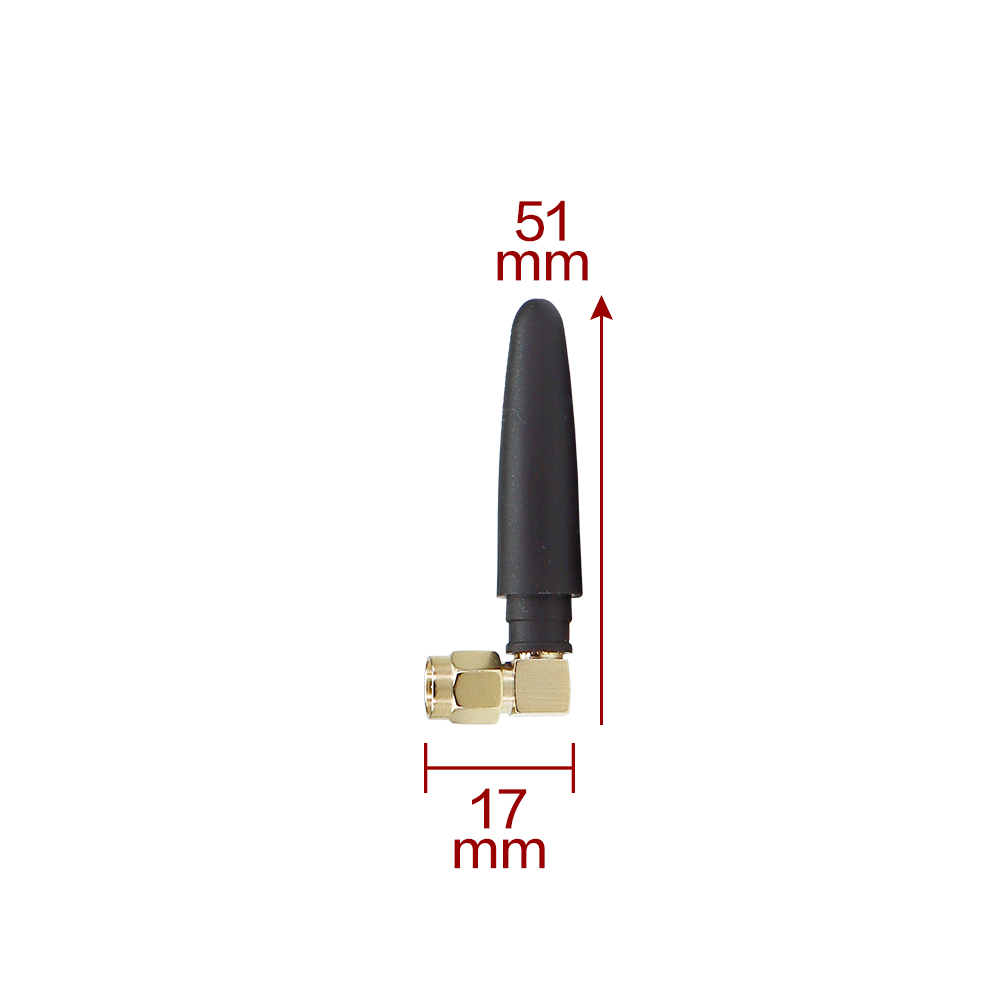

Dimensions (mm)	48-50mm
Noise Factor (dBi)	≤1.5
Operating Temperature (℃)	-40–60°
Relative Humidity	Up to 95%
ROHS Compliant	yes
