Frequency Range (MHz)
|
698-4000MHz
|
|
Polarization
|
Vertical
|
|
Gain (dBi)
|
5dbi
|
|
VSWR
|
≤1.5
|
|
Input Impedance (Ω)
|
50
|
|
Maximum Power (W)
|
100
|
|
Connector type
|
Type N Female
|
|
Mount Type
|
Mast Mount
|
|
Cable length (Meter)
|
1M (customizable)
|
|
Radome material
|
UV-ABS
|
|

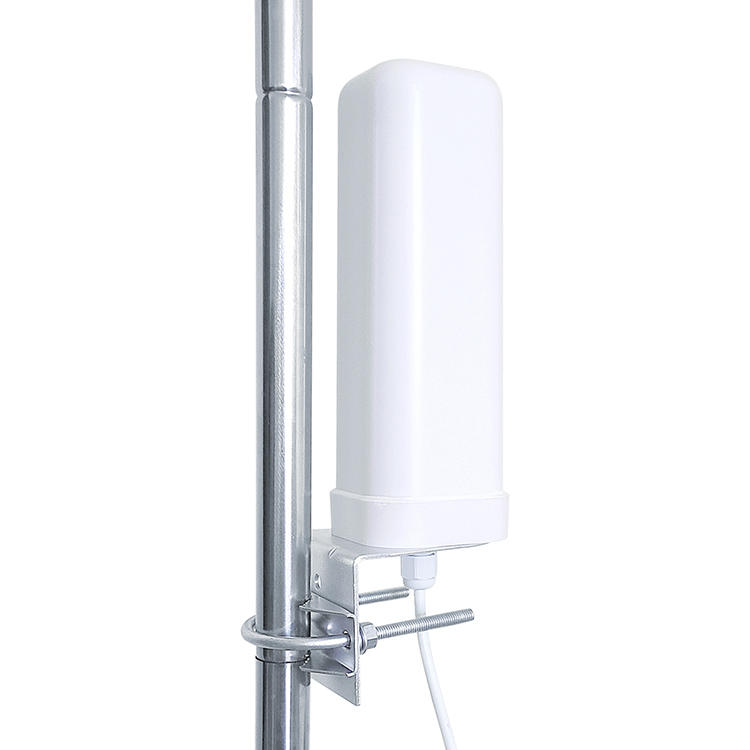

Mount way
|
Pole-Holding
|
|
Reflector material
|
Brass
|
|

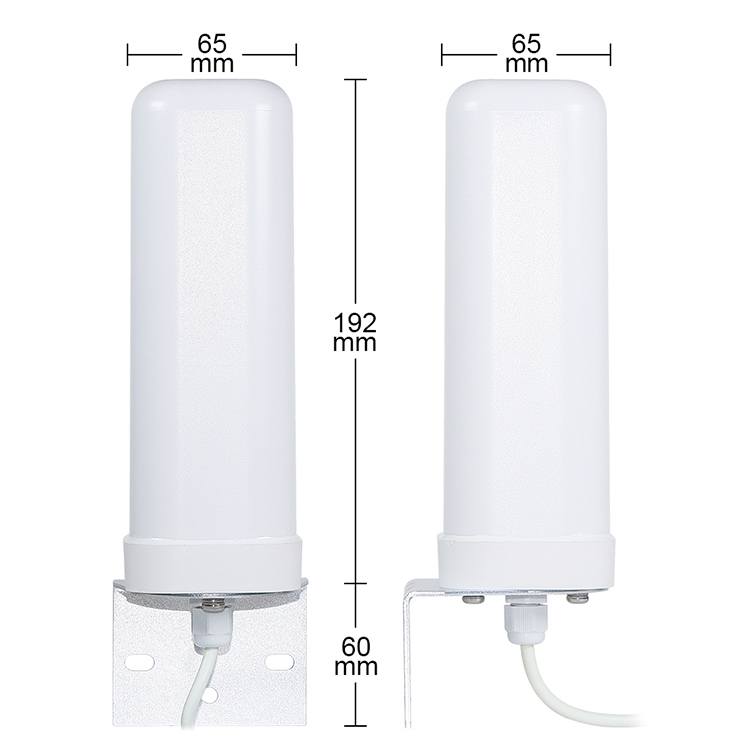

Dimensions (mm)
|
65x65x190
|
|
Weight (g)
|
380
|
|
Noise Factor (dBi)
|
≤1.5
|
|
Waterproof
|
IP66
|
|
Operating Temperature (℃)
|
-30-+75°C
|
