Frequency Range
|
680~960MHz
|
1710~2700MHz
|
|
Gain
|
8 dBi
|
9.5 dBi
|
|
VSWR
|
≤1.5
|
|
|
Polarization Type
|
Vertical
|
|
|
Input Impedance
|
50Ω
|
|
|
Horizontal Beamwidth
|
85°
|
60°
|
|
Vertical Beamwidth
|
60°
|
50°
|
|
Maximum Power
|
50W
|
|
|

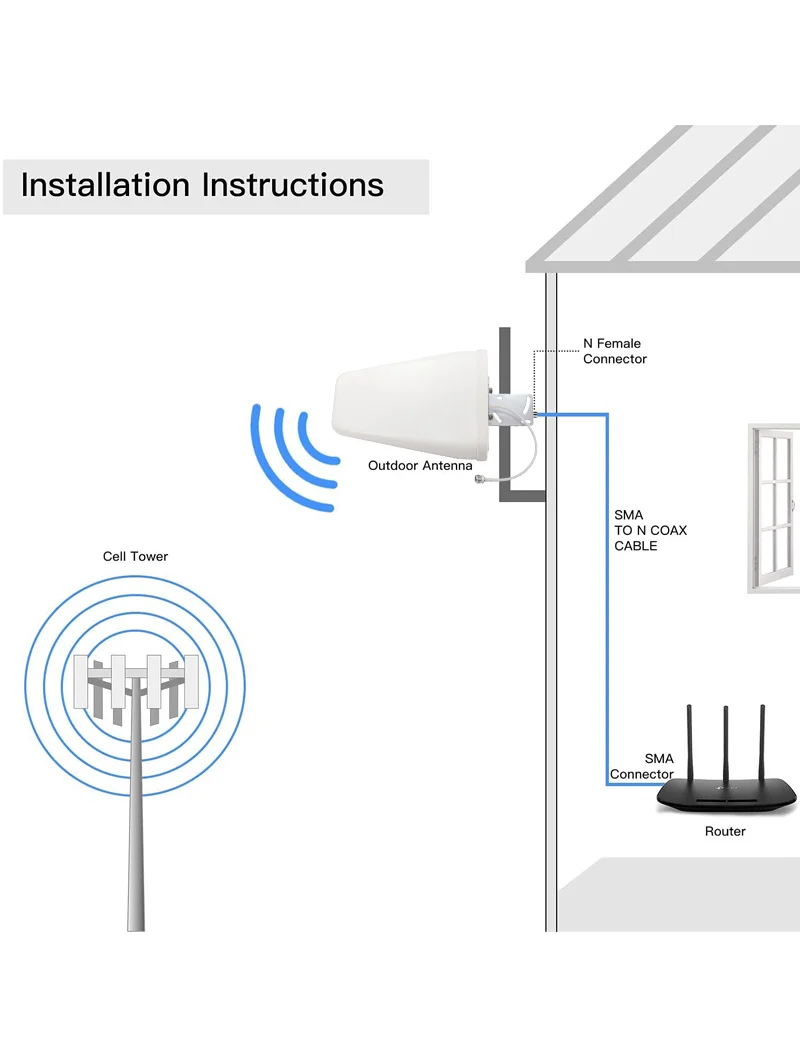

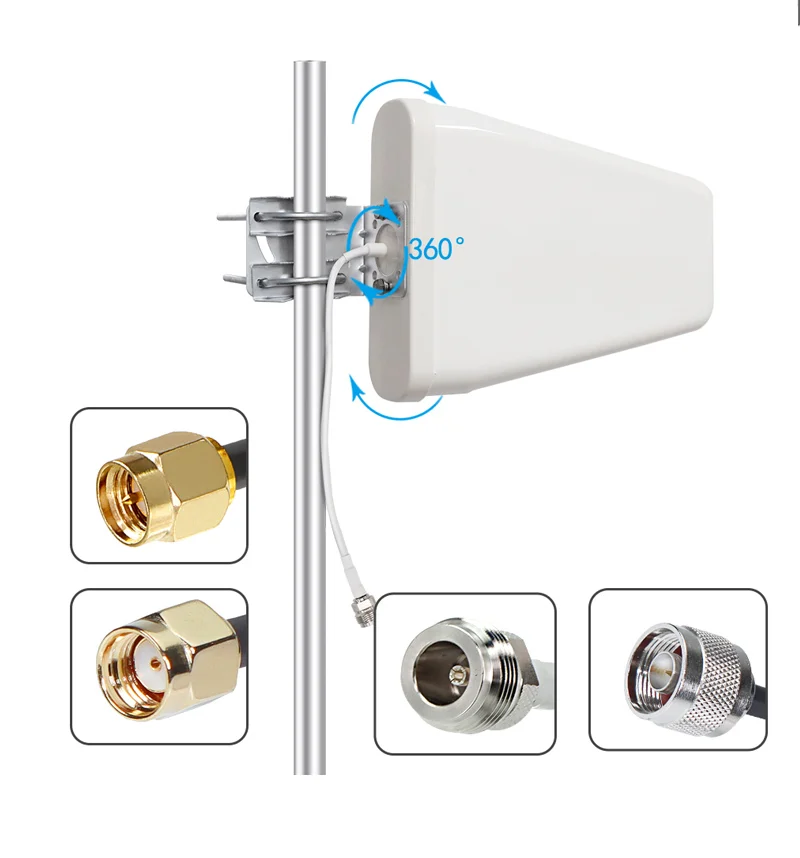

Connector Type
|
N-Female
|
|
|
Lighting Protection
|
DC Ground
|
|
|

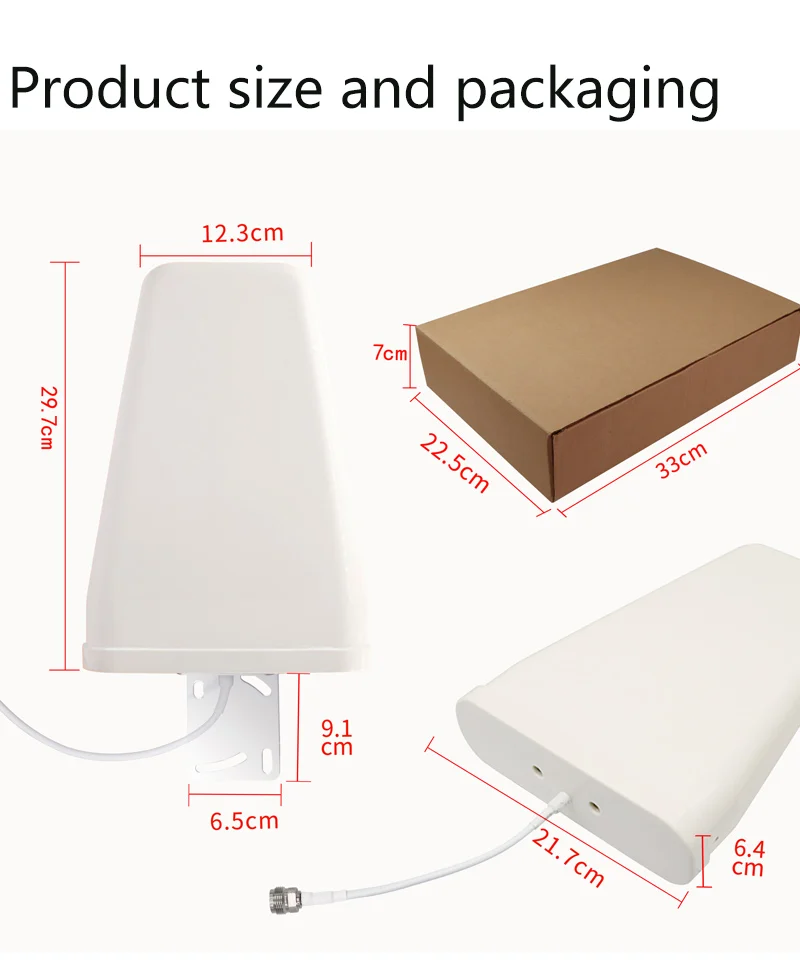

Dimension
|
293×210×65 mm
|
|
|
Weight
|
0.92Kg
|
|
|
Rated Wind Velocity
|
140km/h
|
|
|
Working Temperature
|
-40℃~+65℃
|
|
|
ROHS Complaint
|
Yes
|
|
