Frequency Range (MHz)
|
698-2700MHz
|
|
Gain (dBi)
|
≥3
|
|
Horizontal Beamwidth (°)
|
360
|
|

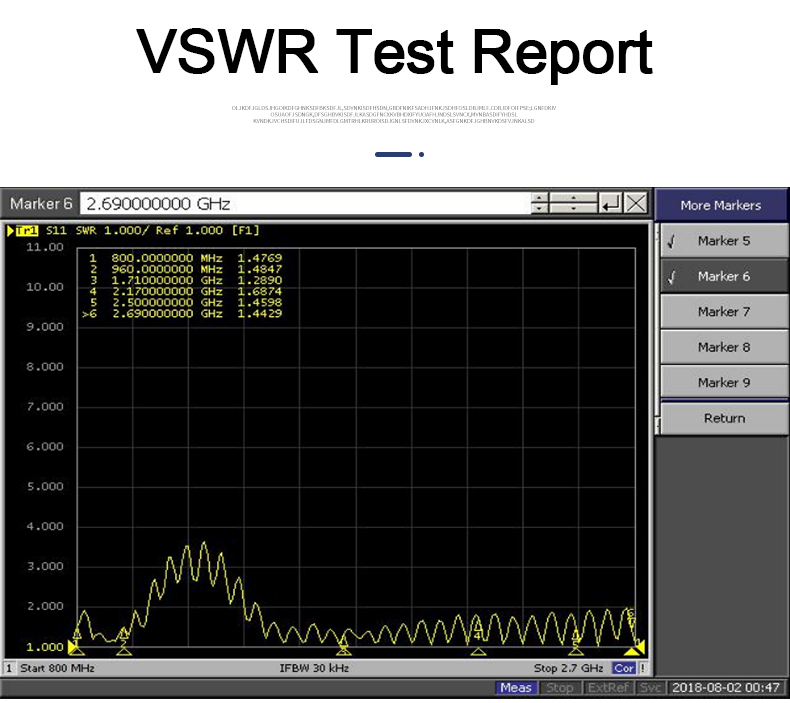

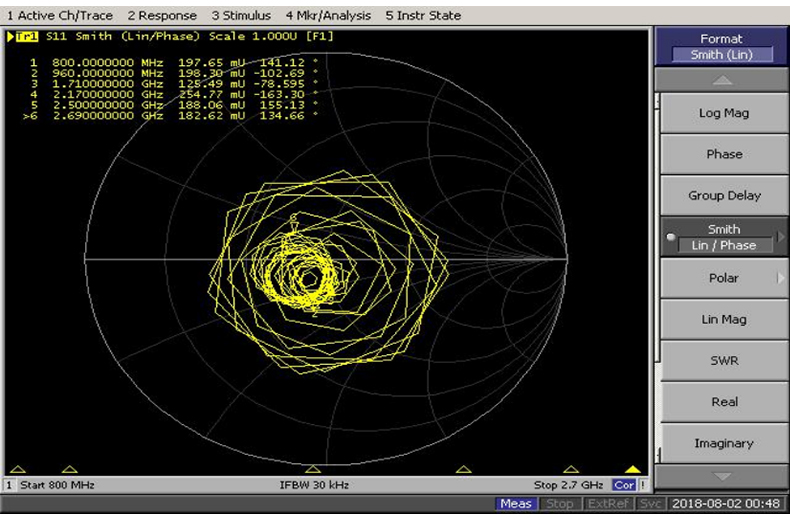

VSWR
|
≤1.5
|
|
Input Impedance (Ω)
|
50
|
|
Maximum Power (W)
|
50
|
|
Power
|
DC5V
|
|
Power consumption
|
≤30mA
|
|

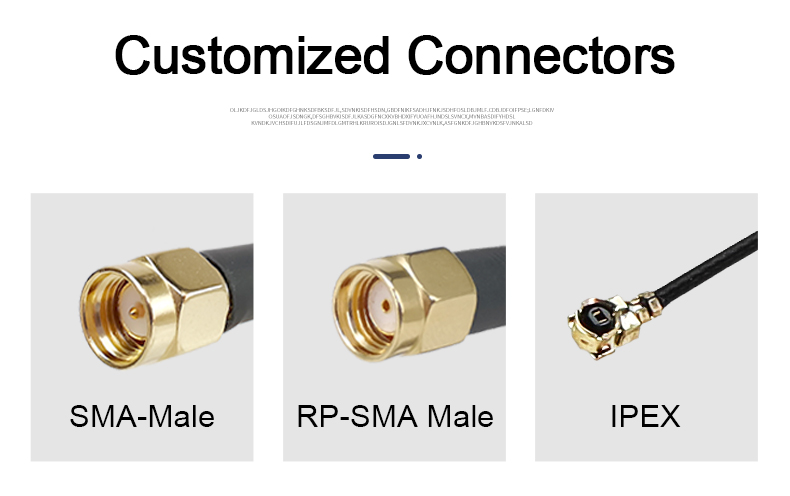

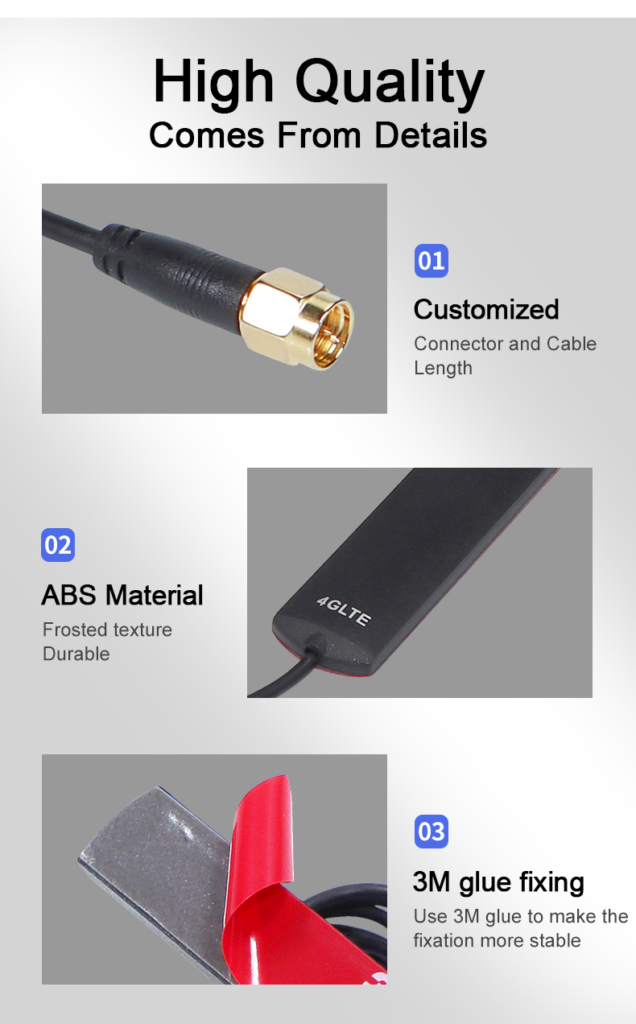

Connector type
|
SMA-J
|
|

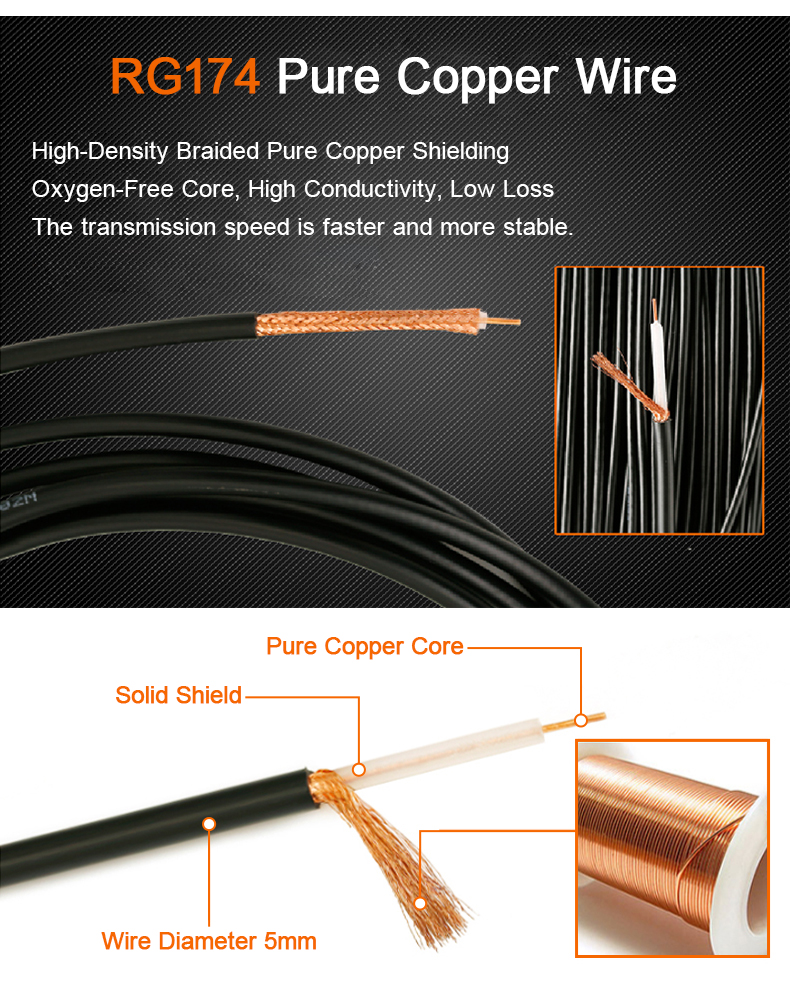

Cable Type
|
RG174
|
|
Cable length (Meter)
|
1.5±0.03M
|
|
Material
|
ABS
|
|

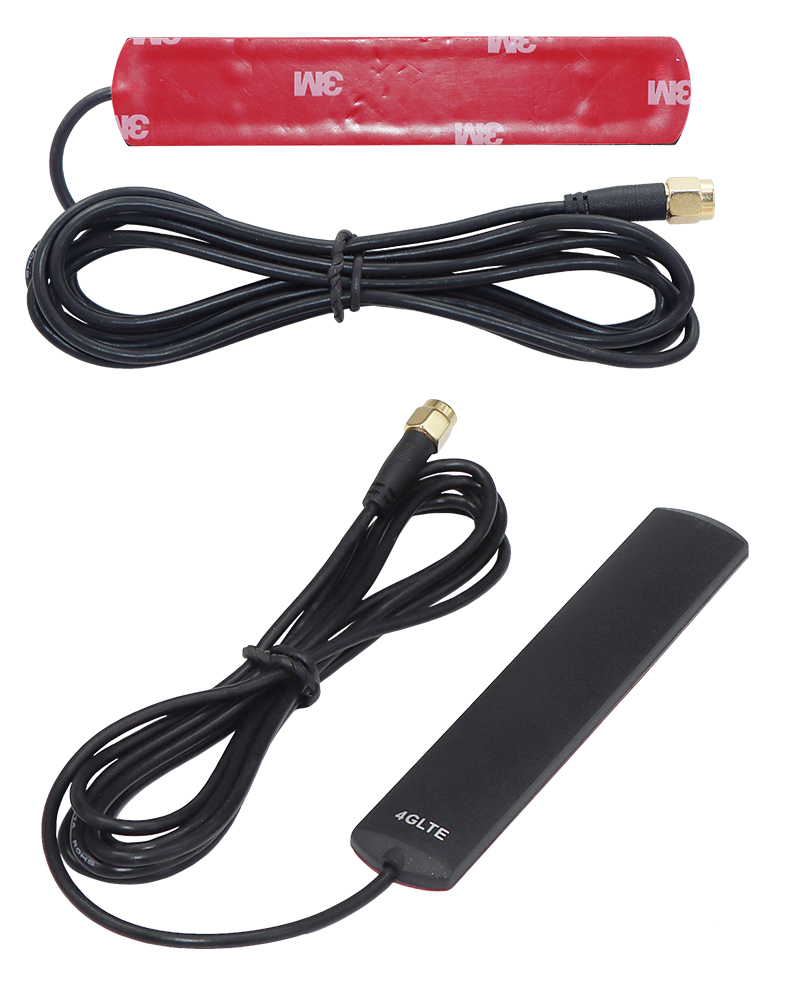

Mount way
|
Adhesive
|
|

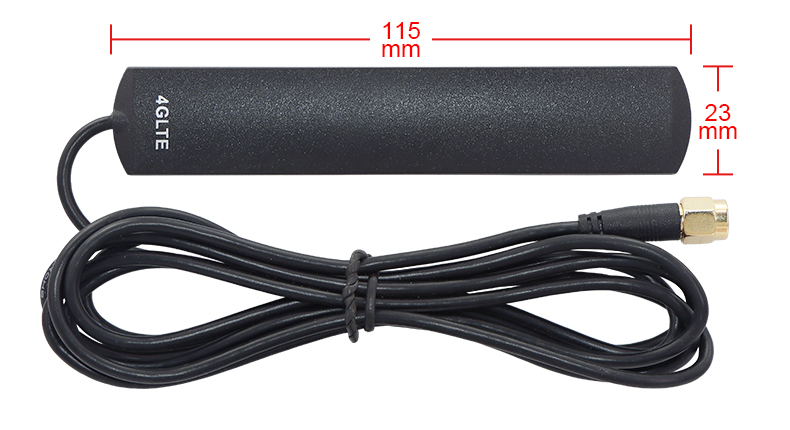

Dimensions (mm)
|
116*22*7mm
|
|
Weight (g)
|
36
|
|
Operating Temperature (℃)
|
-40–70°
|
|
ROHS Complaint
|
yes
|
