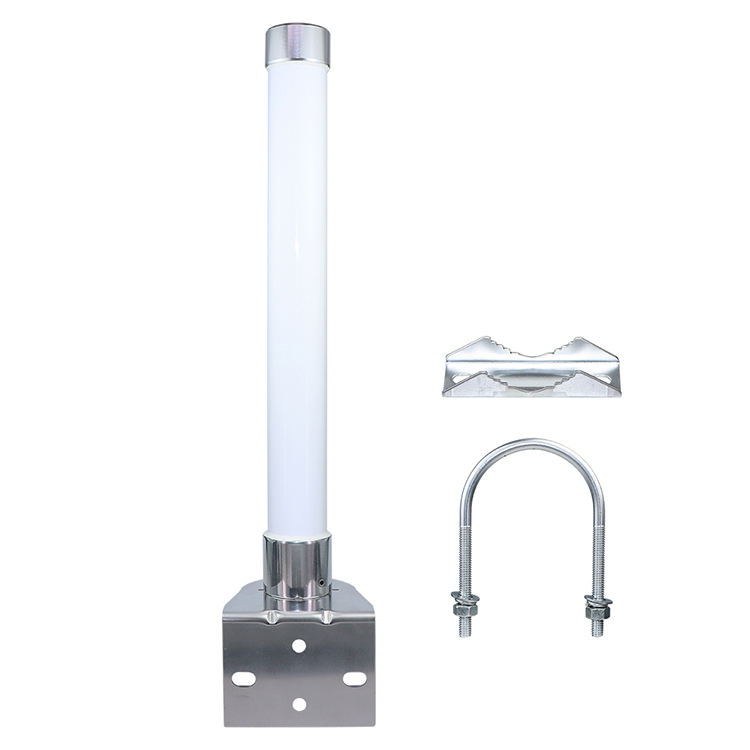

Factory Direct High Gain Omni Directional Waterproof Bracket Fixed Outdoor GSM 3G LTE 4G Fiberglass Antenna

Model: TSD-P6927Z07-01

Factory Direct High Gain Omni Directional Waterproof Bracket Fixed Outdoor GSM 3G LTE 4G Fiberglass Antenna

Specifications

Model TSD-P6927Z07-01

Customization Standard Only

Material Fiberglass (FRP)

Key Features

✓ High-strength fiberglass construction
✓ Weather-resistant outdoor design
✓ Excellent RF performance
✓ Low maintenance requirements

Need a Quote?

Contact us for pricing, customization options, or technical specifications.

Send Inquiry Fast response within 24 hours

Product Description

Frequency Range (MHz)	698-2700mhz
Gain (dBi)	5dBi
Horizontal Beamwidth (°)	360
VSWR	≤2
Input Impedance (Ω)	50
Maximum Power (W)	50
NConnector type	N-male or can be customized
Material	Fiber glass
Mount way	Screw
Dimensions (mm)	362mmx72mmx77mm
Waterproof	IP66
Operating Temperature (℃)	-30-+60°C
Relative Humidity	Up to 95%
ROHS Complaint	yes

Related Products

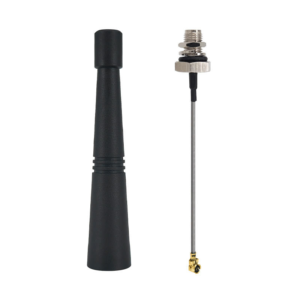

2.4G Omnidirectional Portable External Wireless WIFI 2.4G Rubber Duck Antenna with RF Assembly Cable
