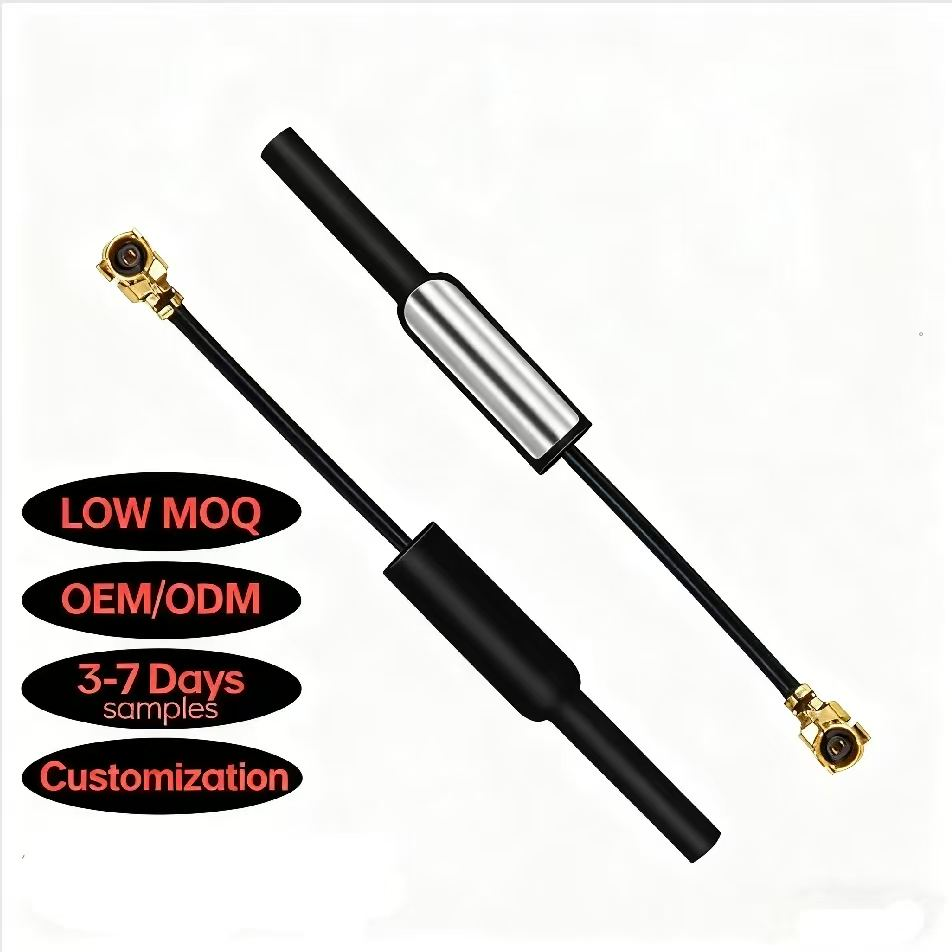

Drone Image Transmission Antenna 5150-5850MHz Built-in Antenna 5.8GHz Omnidirectional Antenna for FPV Drones and UAV

Model: SD51-58-A

Drone Image Transmission Antenna 5150-5850MHz Built-in Antenna 5.8GHz Omnidirectional Antenna for FPV Drones and UAV

Specifications

Model SD51-58-A

Customization Standard Only

Material Fiberglass (FRP)

Key Features

✓ High-strength fiberglass construction
✓ Weather-resistant outdoor design
✓ Excellent RF performance
✓ Low maintenance requirements

Need a Quote?

Contact us for pricing, customization options, or technical specifications.

Send Inquiry Fast response within 24 hours

Product Description

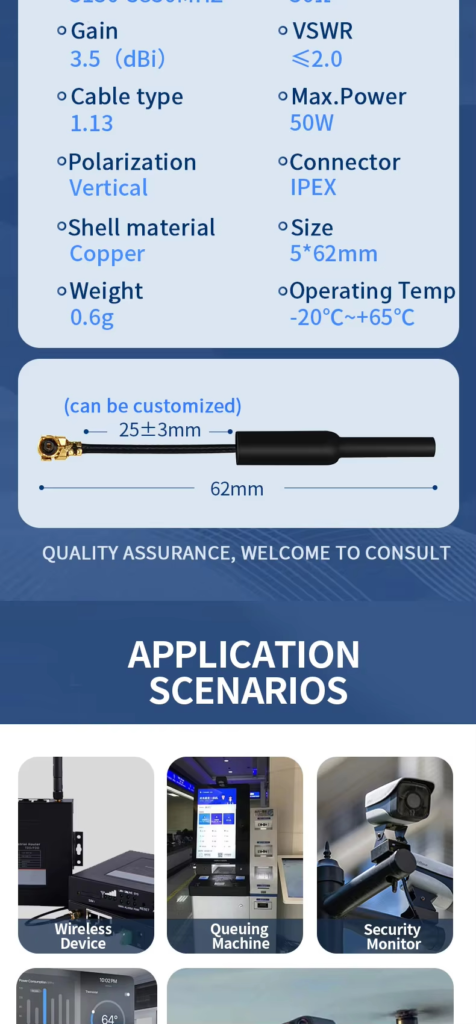

Frequency	5150-5850MHz
Gain	3.5dBi(max)
Size	5*62mm
VSWR	≤2.0
Max Power	50W
