Frequency Range (MHz)
|
2400-2500MHz
|
|
Gain (dBi)
|
6dbi
|
|
VSWR
|
≤1.8
|
|
Horizontal beam width
|
360°
|
|
Vertical beam width
|
55°
|
|
Polarization
|
Vertical
|
|
Input Impedance
|
50Ω
|
|
Maximum input power
|
50W
|
|
Lightning protection
|
DC Ground
|
|

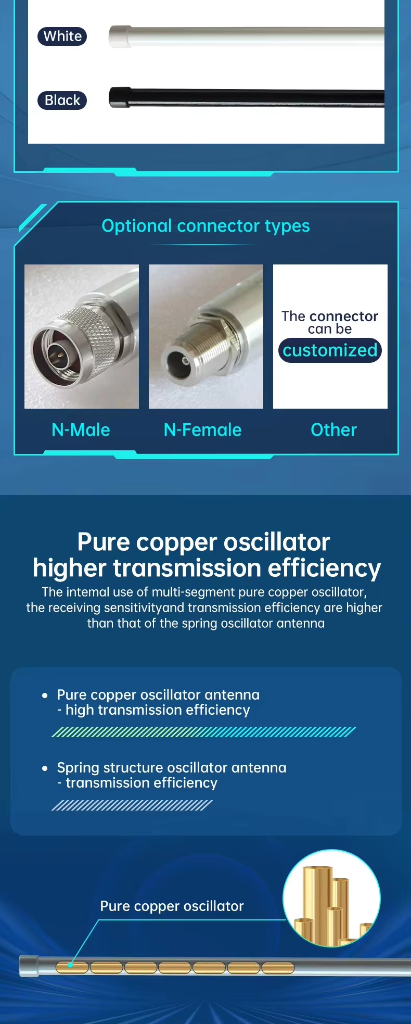

Input connector type
|
N-male/N-female
|
|

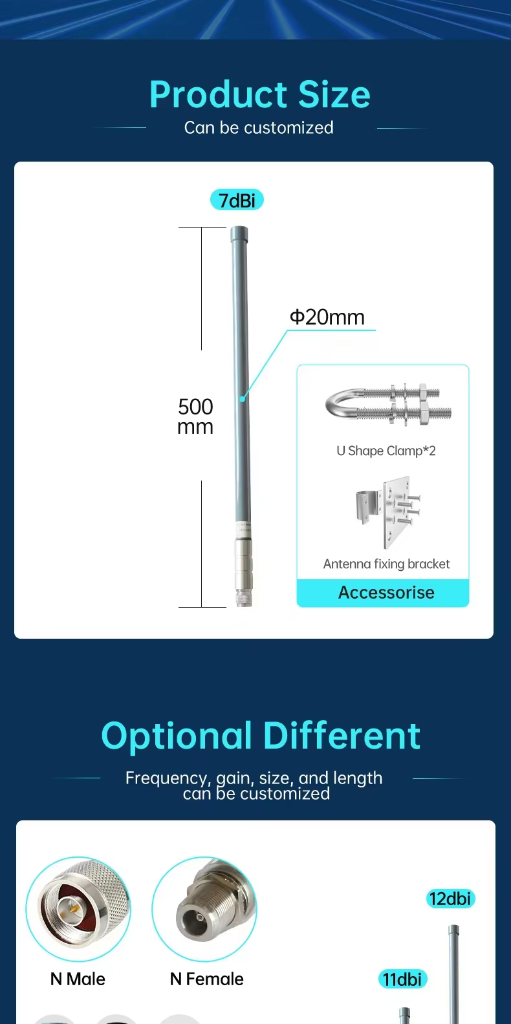

Dimensions
|
20×400mm
|
|
Antenna weight
|
0.3KG
|
|
Radome material
|
Fiberglass
|
|
Radome color
|
Gray/white/black ( can be customized )
|
|
Operating temperature
|
-40°c~60°c
|
|
Rated Wind Velocity
|
60 m/s
|
|

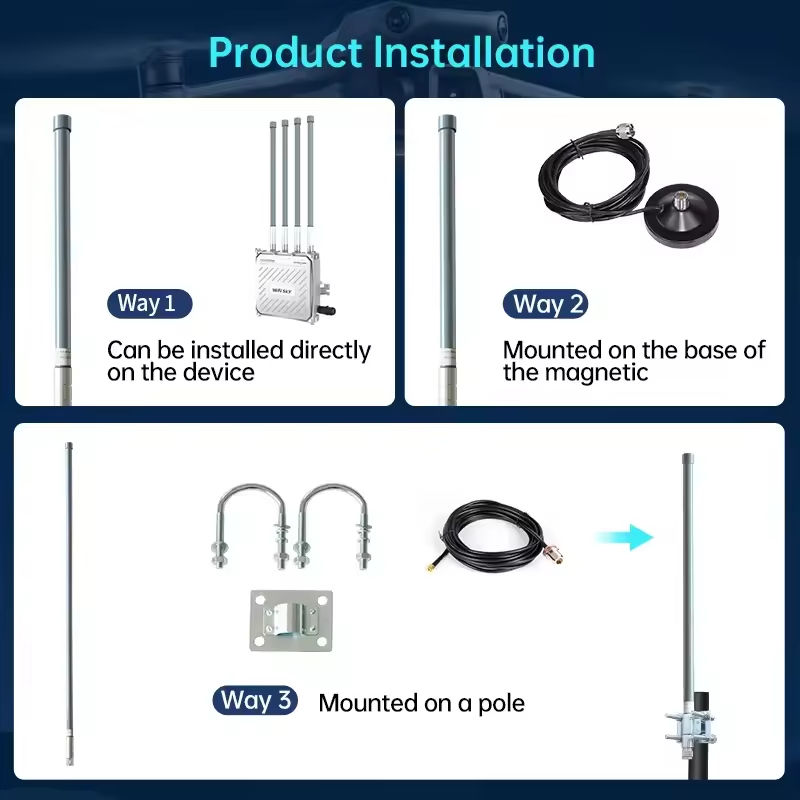

Installation mode
|
Use with suction cup and other mounting seat
|
|
Mounting hardware
|
35~60mm
|
|
Key Advantages of Fiberglass (FRP) Antennas
|
* Weatherproof：Ideal for outdoor use (marine, streetlight-mounted deployments).* Lightweight：Superior to metal antennas for mobile
applications (vehicles, drones). * Anti-Interference：Optimized polarization (vertical/horizontal) for signal stability. |
Primary Applications of 2400-2500MHz Fiberglass Antennas
1. Wireless Networks (WiFi & IoT)
* WiFi Coverage (IEEE 802.11b/g/n/ac/ax) : Smart homes, enterprise access points (APs), public venues (malls, stations).
* Industrial IoT (IIoT) : Wireless monitoring for machinery, AGV/robot communication in warehouses.
* Drone (UAV) Video Transmission : 2.4GHz band for remote control and real-time video feeds.
2. Dedicated Communication & Surveillance
* Wireless Surveillance (DVR/NVR) : Long-range transmission for IP cameras (construction sites, ports, forest fire monitoring).
* Two-Way Radio Systems :Supports DMR/digital radios and civilian walkie-talkies in extended bands.
3. Military & Emergency Communication
* Tactical Communication : Portable military radios and field-deployable mesh networks.
* Disaster Relief : Rugged design for harsh environments (earthquakes, floods).
4. Industrial Equipment
* RFID Reader Antennas : Logistics/warehousing, smart retail (UHF RFID at 2.45GHz).
* Short-Range Microwave Links : Small-capacity P2P backhaul for base stations (alternative to metal antennas).
